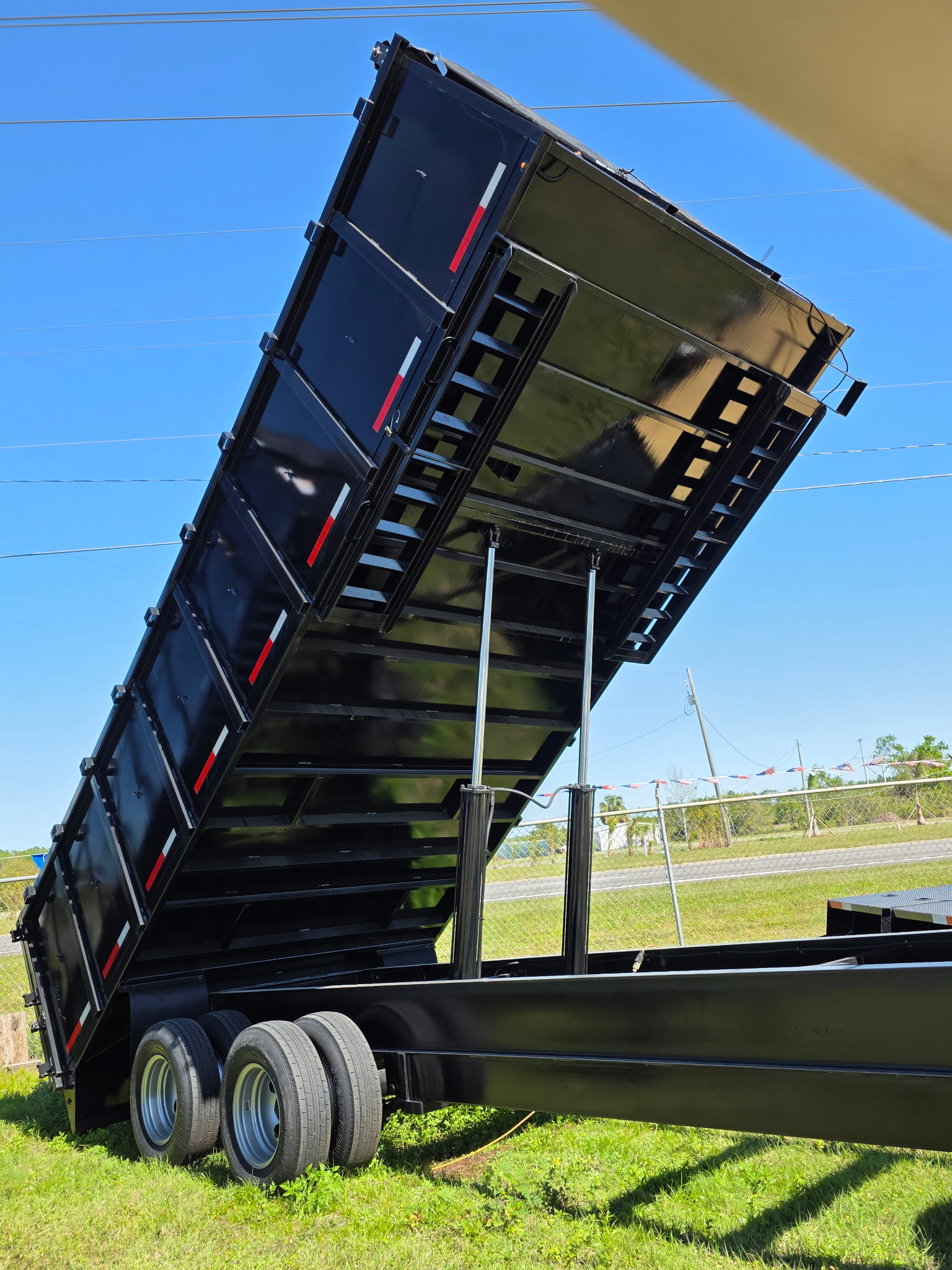

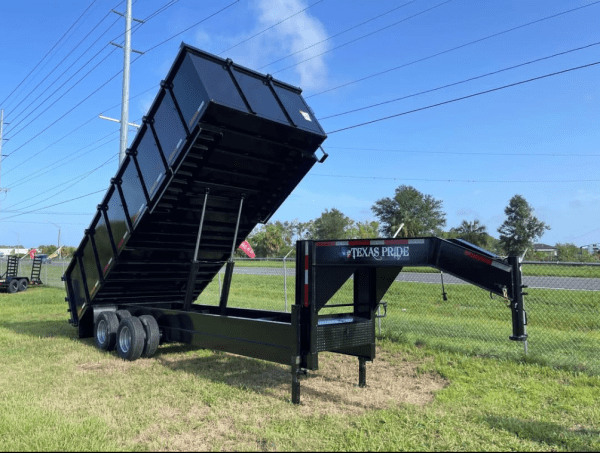

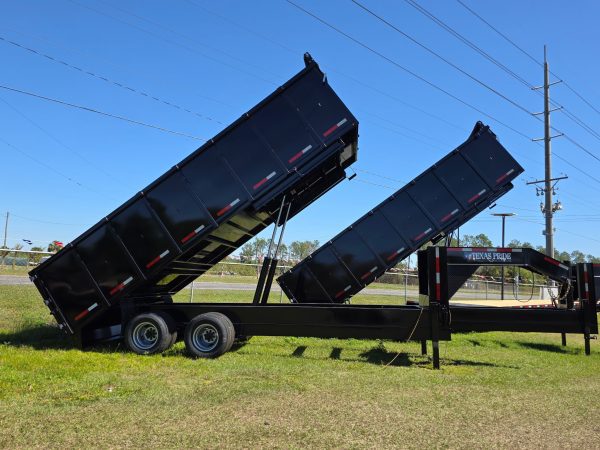

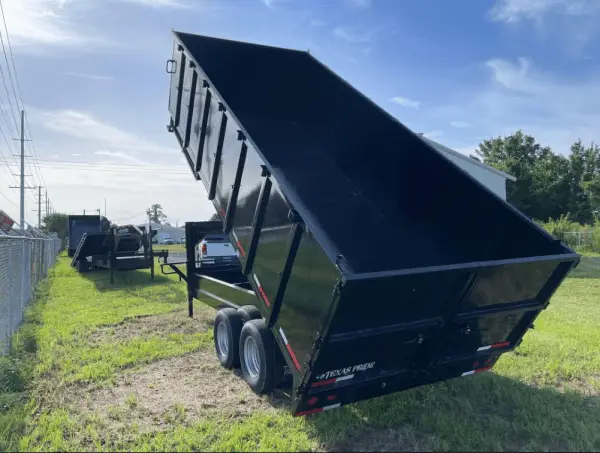

The 8×20 Gooseneck Dump Trailer is built for serious commercial use—delivering exceptional capacity, durability, and power. With a GVWR of 26,000 lbs and 17,900 lb payload capacity, this trailer is designed to move large volumes of material efficiently and safely.

Whether you’re hauling demolition debris, construction waste, aggregate, or heavy equipment, this trailer provides the performance professionals demand.

Key Specifications:

• GVWR: 26,000 lbs

• Trailer Weight (Empty): Approx. 8,100 lbs

• Payload Capacity: 17,900 lbs

• Deck Length: 20 feet

• Deck Width (Inside Clearance): 95 inches

• Deck Height: Approx. 34 inches

• Side Wall Height: 48 inches

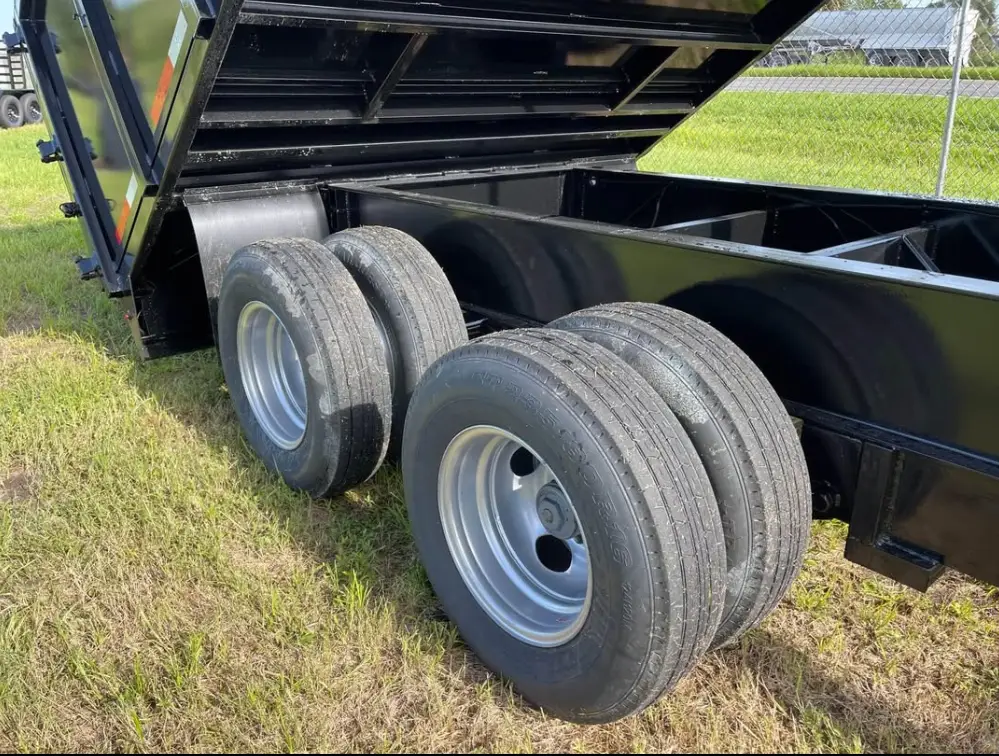

• Axles: Dual tandem 12,000 lb 8-lug direct-lube axles with electric brakes

• Suspension: Heavy-duty slipper spring

• Brakes: All-wheel electric brakes with 12″ x 5″ shoes

• Tires: 16″ ST235/80R16 radial 10-ply, load range E

• Wheels: 16″ x 6″, 8-hole steel (white or silver based on stock)

Construction & Features:

• Main Frame & Tongue: 12″ I-Beam

• Tilt Frame: 3″ x 2″ x 3/16″ rectangular tubing

• Cross Members: 3″ channel

• Bed Floor & Sides: 1/8″ thick steel sheet

• Rear Doors: Double swing barn doors

• Hydraulics: Dual 4″ x 48″ hydraulic cylinders (15,000 lb each), electric over hydraulic pump (power up/down)

• Battery System: Dual Group 27 deep-cycle marine batteries

• Charging System: Onboard 110V charger + truck charging

• Remote Control: 15’ corded control for hydraulic lift

• Toolbox: Locking front toolbox (contains batteries and pump)

• Tie Downs: Stake pockets and D-rings

• Coupler: Adjustable 2 5/16″ gooseneck ball

• Jacks: Dual 12,000 lb drop-leg jacks (spring-loaded)

• Lighting: Lifetime LED flush-mount lighting for stop/turn/clearance

• Wiring: USA-made sealed modular wiring harness

• Safety: Breakaway kit, DOT-required lighting, reflectors, safety chains, and prop rod

• Finish: Primed and painted with automotive-grade acrylic enamel

Built for Demanding Hauls:

From demolition jobs to agricultural bulk transport, the 8×20 26K dump gooseneck trailer is made for crews and companies that need high-volume, reliable dumping power. Its robust steel build, deep dump bed, and dual hydraulic cylinders make heavy loads manageable and efficient, whether you’re on the job site or off-road.

Perfect for:

• Demolition and construction crews

• Land clearing and excavation contractors

• Waste management and hauling companies

• Agricultural and landscaping operations
