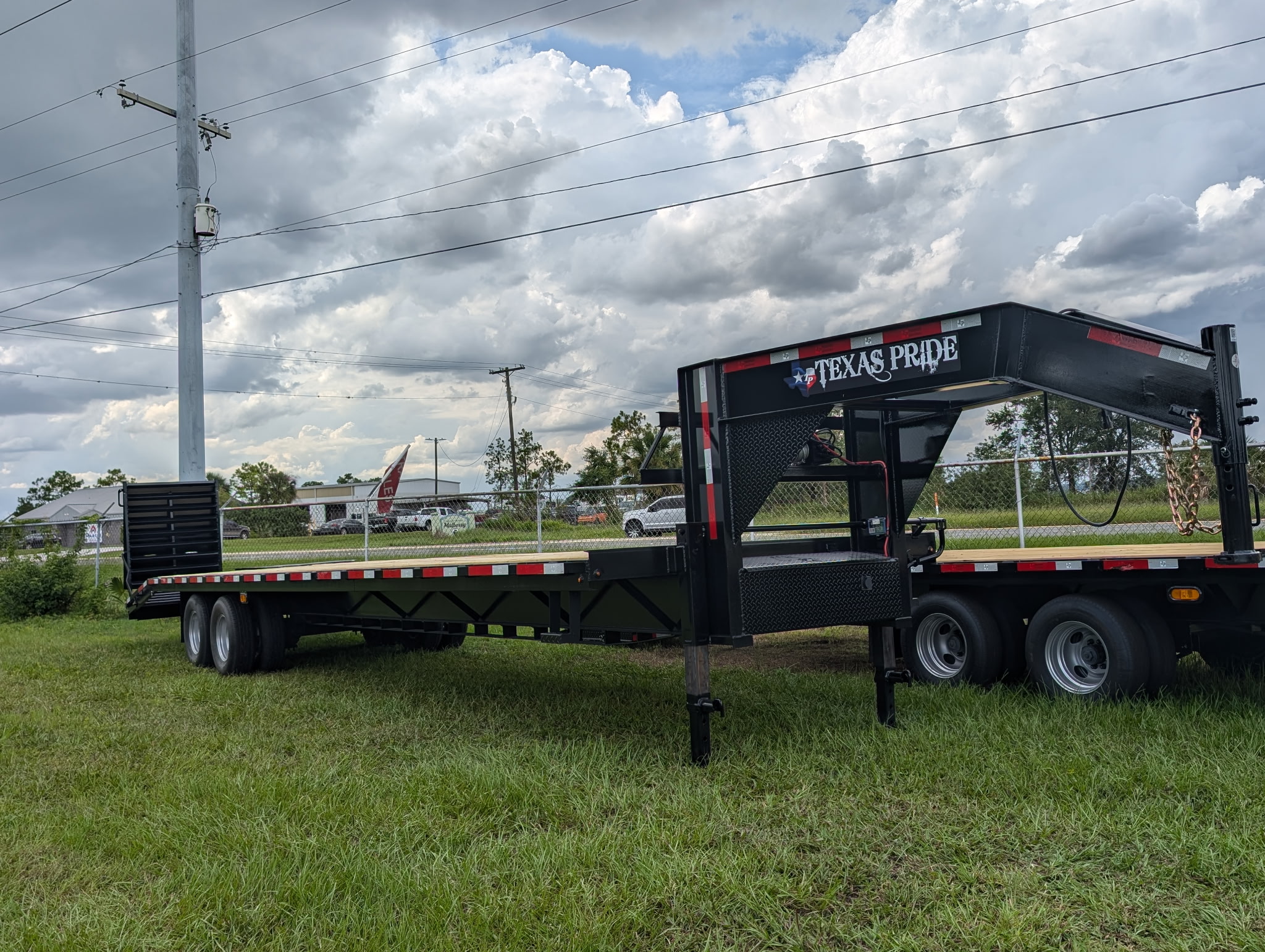

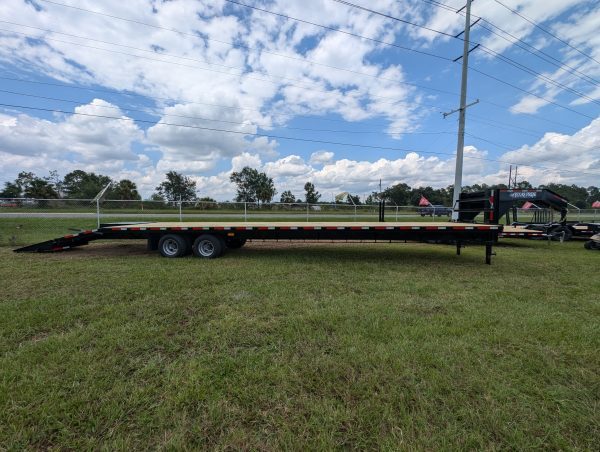

The 40′ Flatbed Gooseneck Trailer is built for high-capacity, high-performance hauling. Engineered for commercial use and heavy-duty equipment transport, this trailer delivers outstanding strength, control, and versatility.

With a gross vehicle weight rating (GVWR) of 26,000 lbs and a net payload capacity of 19,600 lbs, this gooseneck trailer is ideal for contractors, farmers, and heavy equipment operators who need a reliable and rugged trailer for demanding loads.

Key Specifications:

• GVWR: 26,000 lbs

• Trailer Weight (Empty): 6,400 lbs

• Net Payload Capacity: 19,600 lbs

• Deck Length: 40 feet

• Deck Width: 8.5 feet (102 inches overall)

• Deck Height: Approx. 34 inches

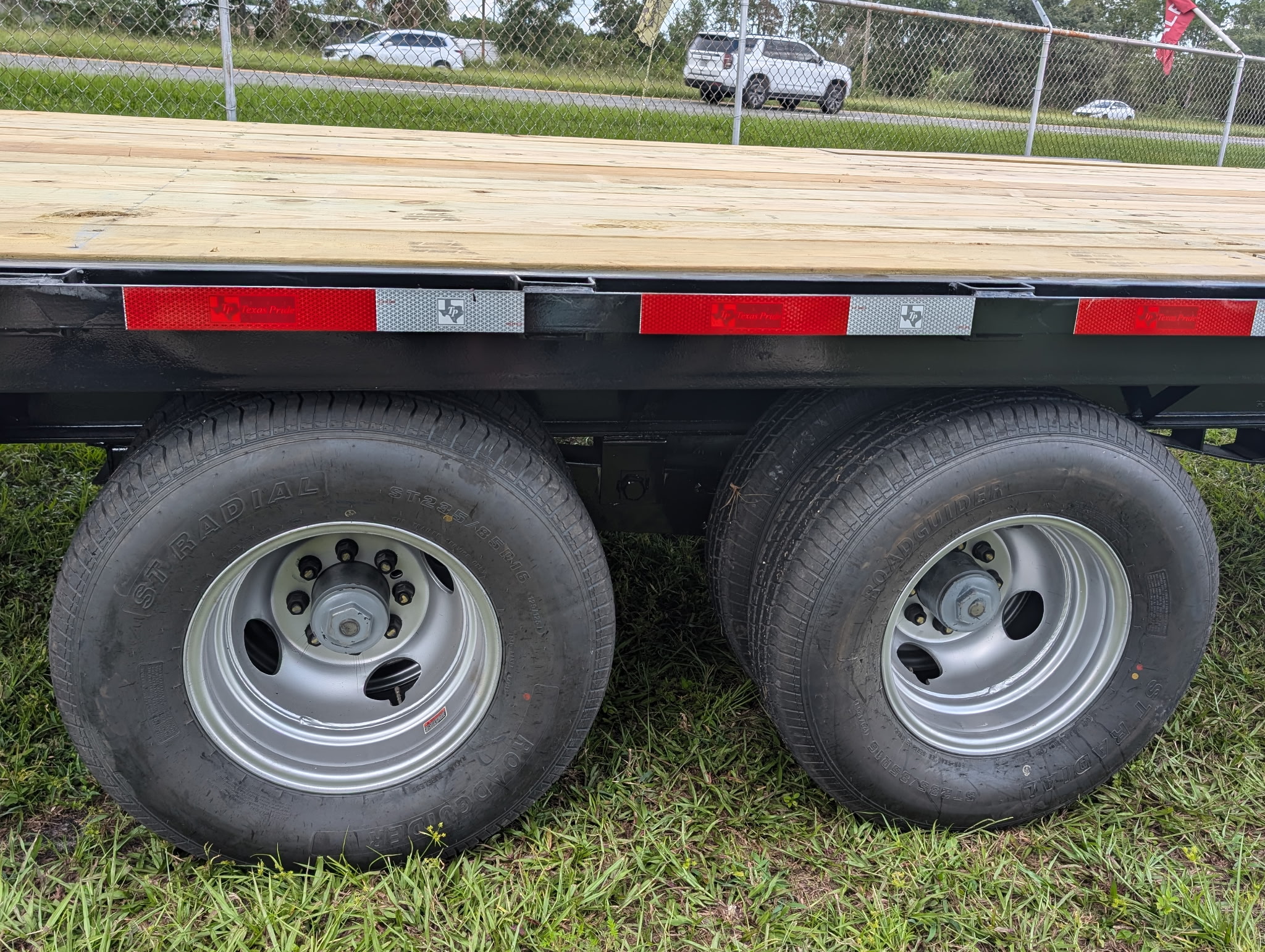

• Axles: Dual tandem 12,000 lb direct-lubed axles with electric brakes

• Suspension: Heavy-duty slipper spring

• Tires: 16″ ST235/80R16 10-ply radial tires, load range E (3,520 lbs each)

• Wheels: 16″ × 6″, 8-lug steel (white or silver depending on availability)

Construction & Features:

• Main Frame: 12″ I-Beam construction

• Cross Members: 3″ channel on 16″ centers for enhanced structural integrity

• Outer Frame: 6″ channel

• Gooseneck Structure: 12″ I-Beam risers and beams for optimal strength

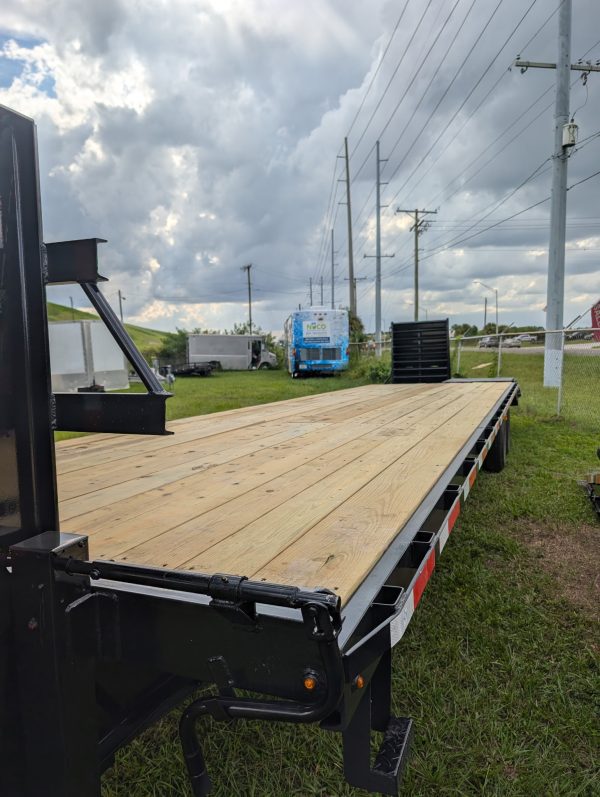

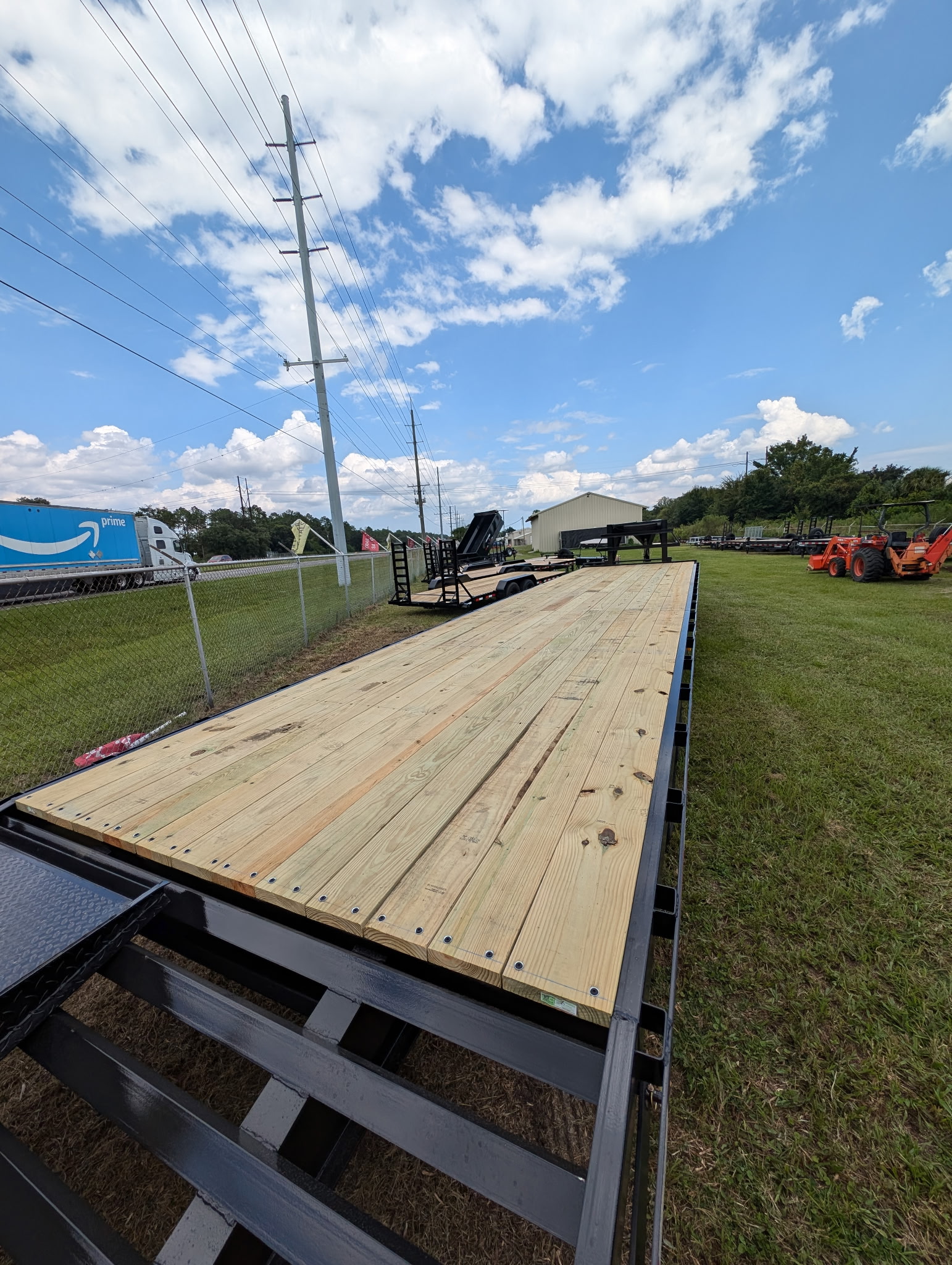

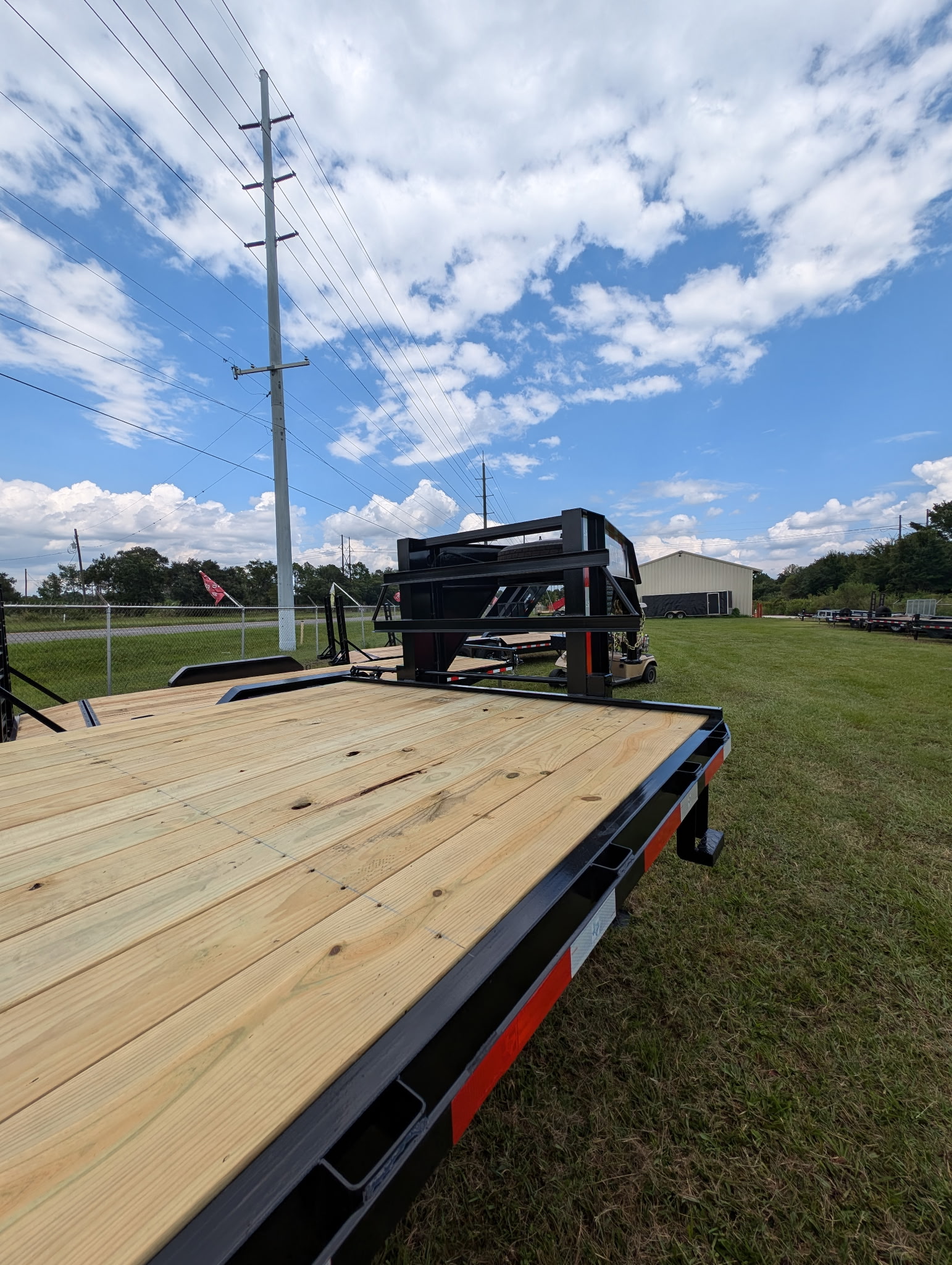

• Flooring: 2″ treated pine, screwed down for durability

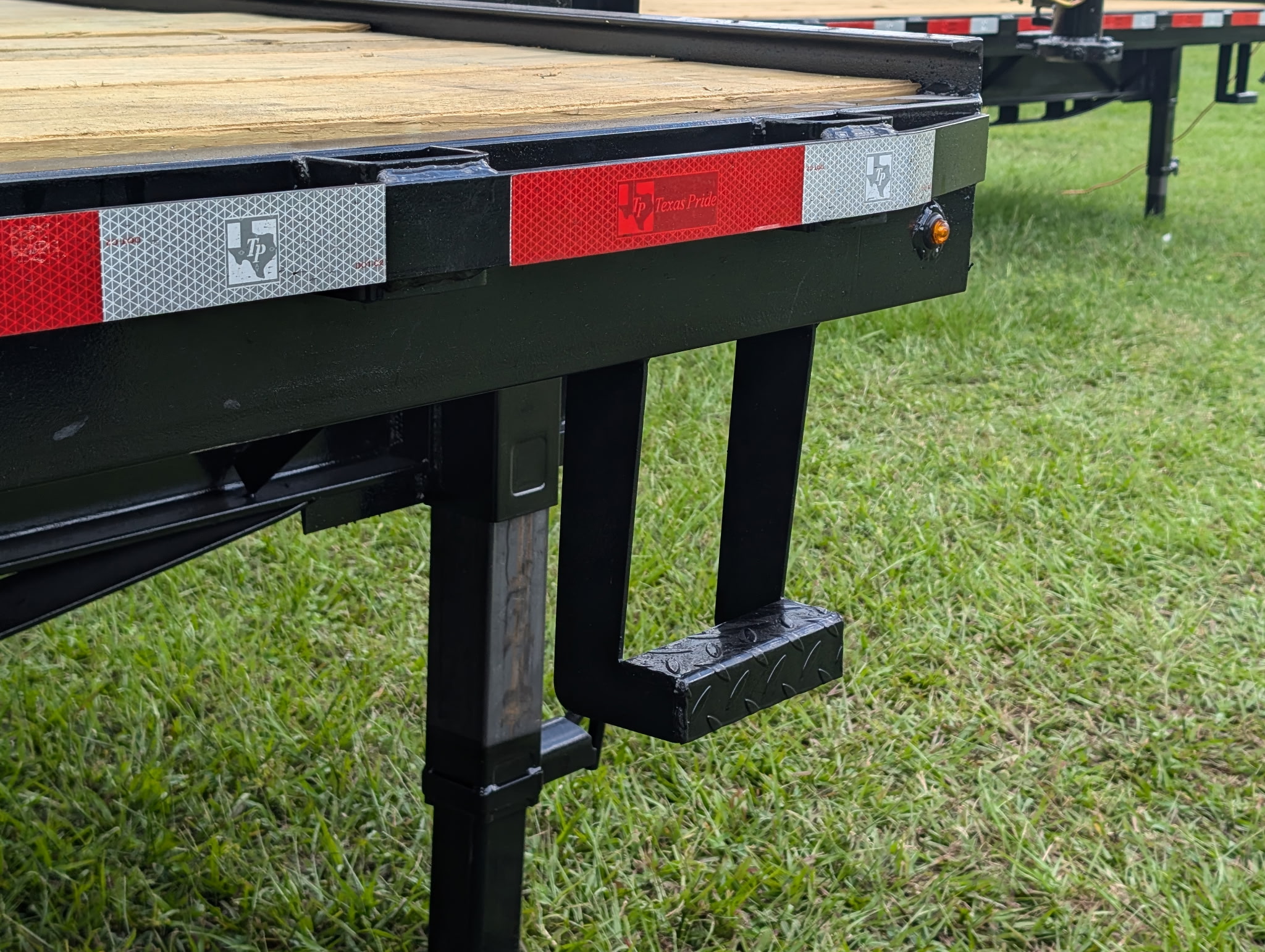

• Tie-Down System: Stake pockets on 24″ centers with heavy-duty rub rail (2″ x 3/8″)

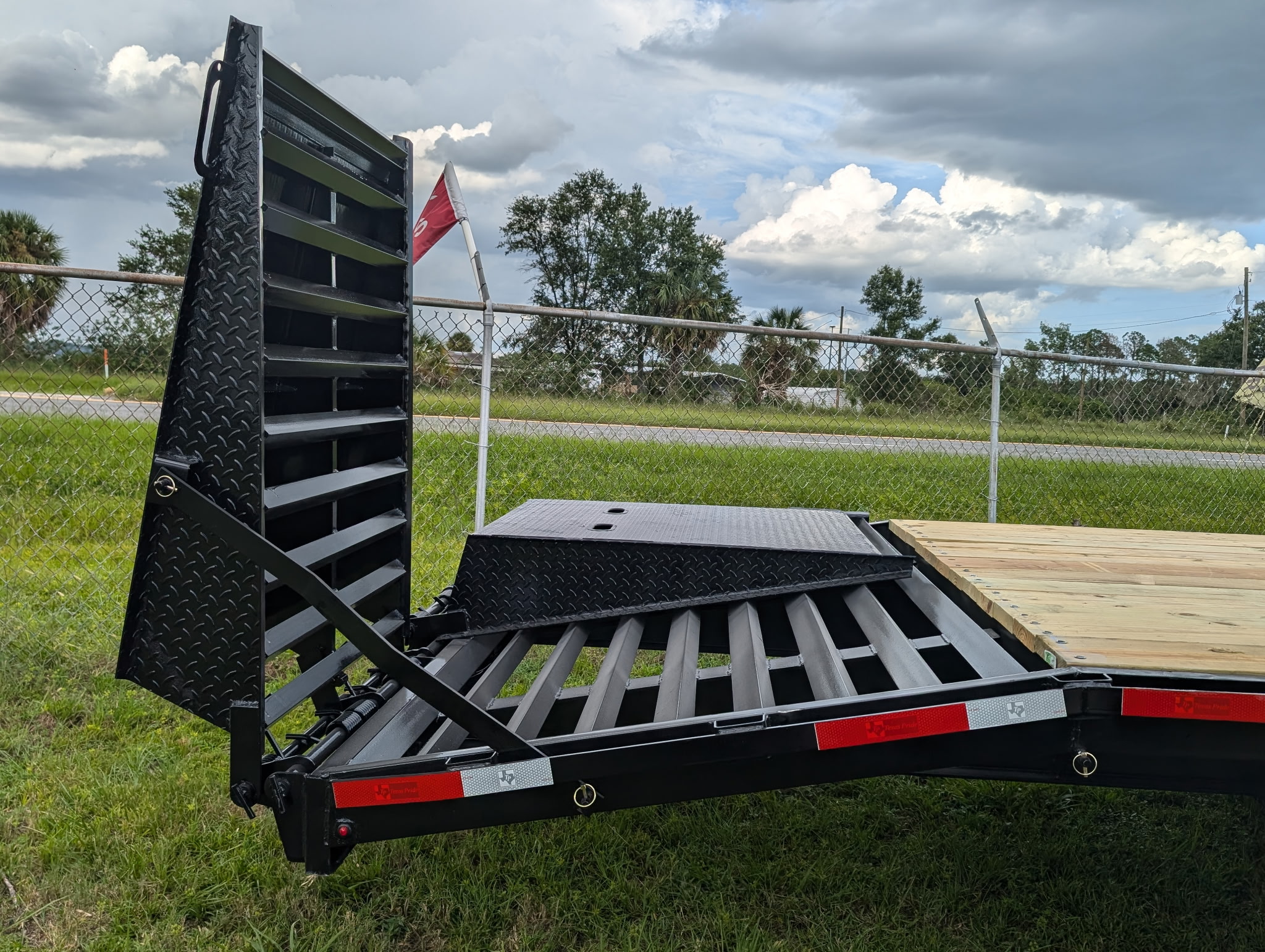

• Ramps: 8′ slide-in ramps (flat deck) or 5′ fold-over, deck-level, spring-assisted ramps (dovetail models)

• Dovetail: 5′ self-cleaning option (not included on flat deck models)

• Coupler: Adjustable 2 5/16″ gooseneck ball coupler

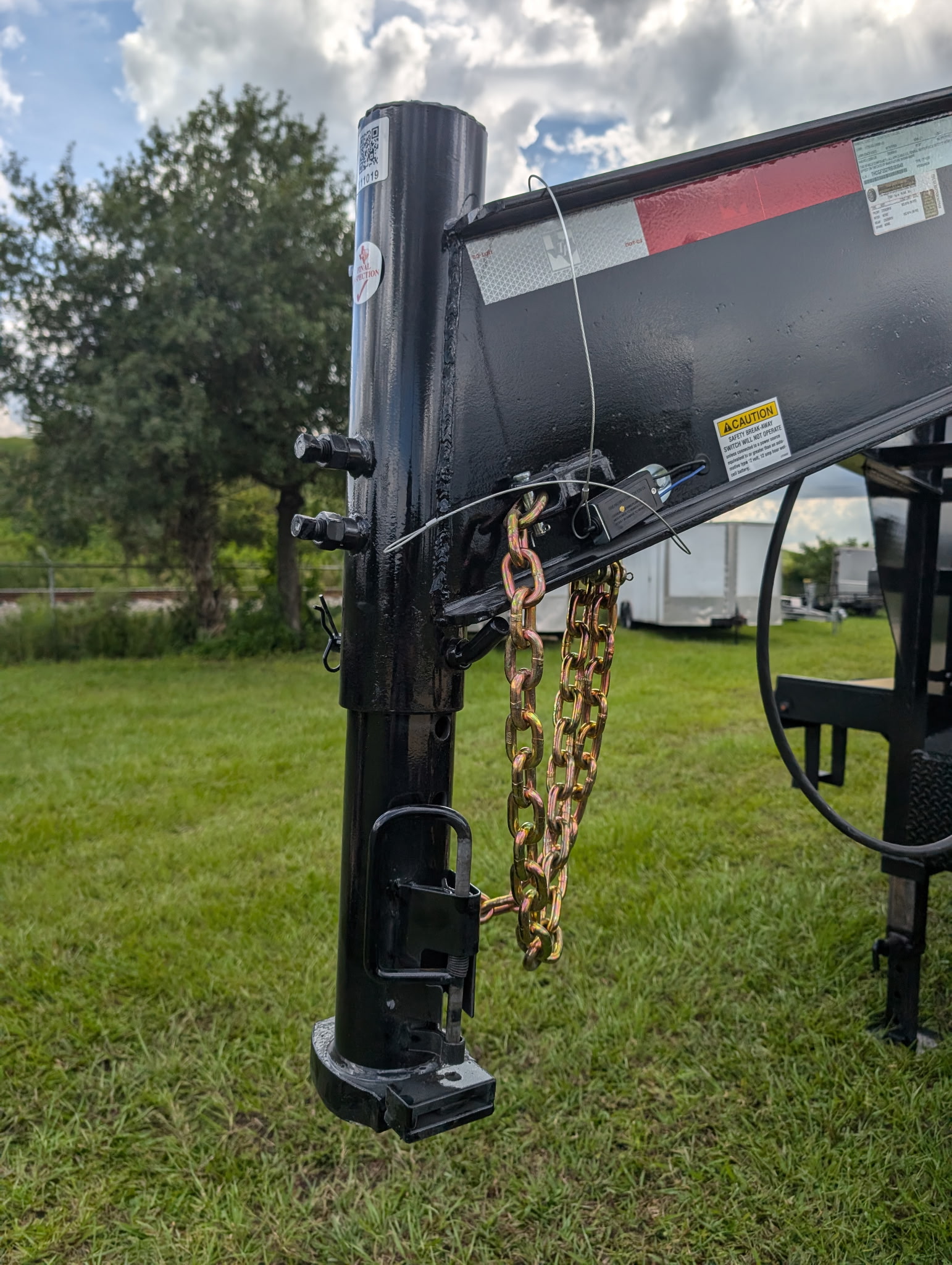

• Jacks: Dual 12,000 lb drop-leg jacks (spring-loaded)

• Storage: Front locking chain box built into gooseneck

• Safety Equipment: Electric brakes on all axles, breakaway system, safety chains, DOT lighting and reflectors

• Lighting: All flush-mount or recessed lifetime LED lights

• Wiring: USA-made sealed modular wiring harness

• Finish: Primed and painted with automotive-grade acrylic enamel for durability

Built to Haul Heavy and Perform Daily:

Whether you’re moving heavy equipment, farm machinery, or large loads of materials, this 40-foot flatbed gooseneck trailer is designed to handle high-volume, high-weight transport with ease. With premium axles, high-tensile steel framing, and thoughtful loading features, it’s the go-to choice for professional haulers.
