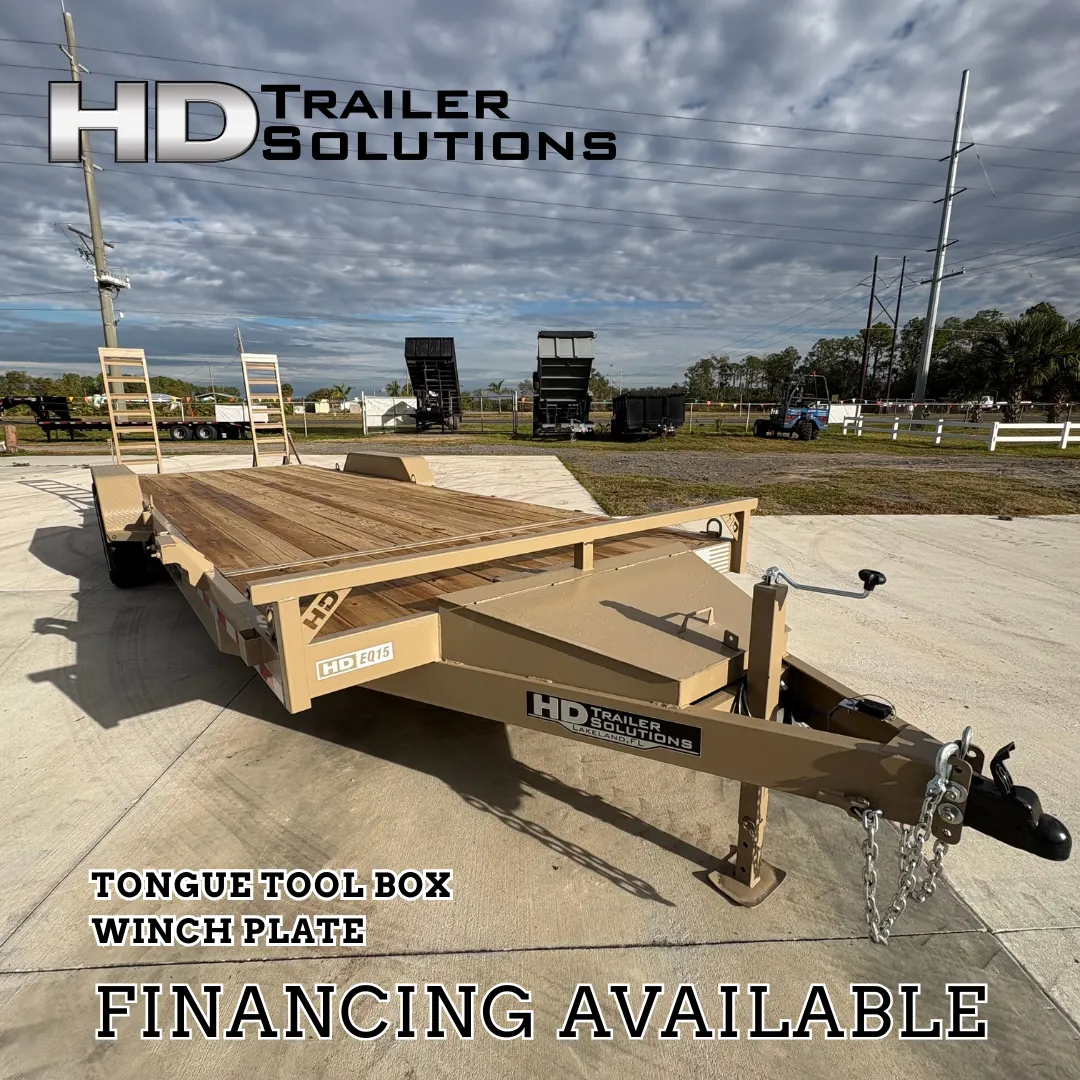

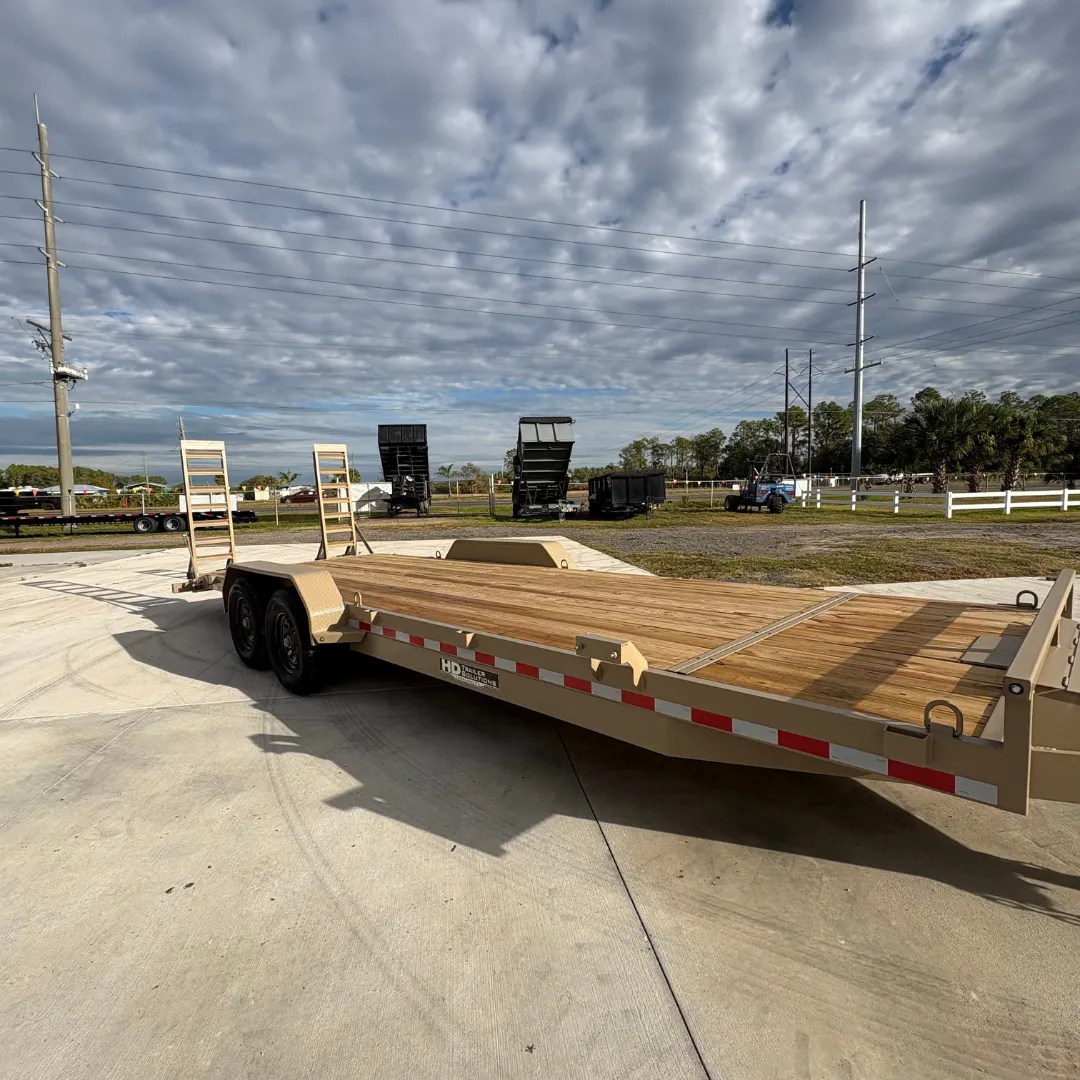

The 7×24 15K Equipment Trailer is engineered for strength, reliability, and professional-grade hauling. Built with a full 6″ channel frame, reinforced 22′ deck plus 2′ dovetail, and tandem 7,000 lb braking axles, this trailer is designed to handle everyday jobsite demands with confidence.

Equipped with heavy-duty spring-assisted ramps, eight welded D-rings, stake pockets at the 4′ mark, and a factory-installed winch plate, this model provides versatile loading options for equipment, machinery, and materials. A long 6″ channel tongue, standard 8″ bump rail, and 12K drop-foot jack add stability and safety during loading and towing.

Finished in durable Tan Paint and built with sealed wiring and DOT-compliant lighting, this trailer delivers both rugged performance and a clean, professional appearance.

Key Specifications

Frame & Structure

Main Frame: 24′ – 6″ channel (×2)
Front End Channel: 78-1/4″ – 6″ channel
Rear End Channel: 82″ – 6″ channel
Crossmembers: 81-5/8″ – 3″ channel (×18)
Tongue: 191″ – 6″ channel (×2)
Decking: Wood plank deck

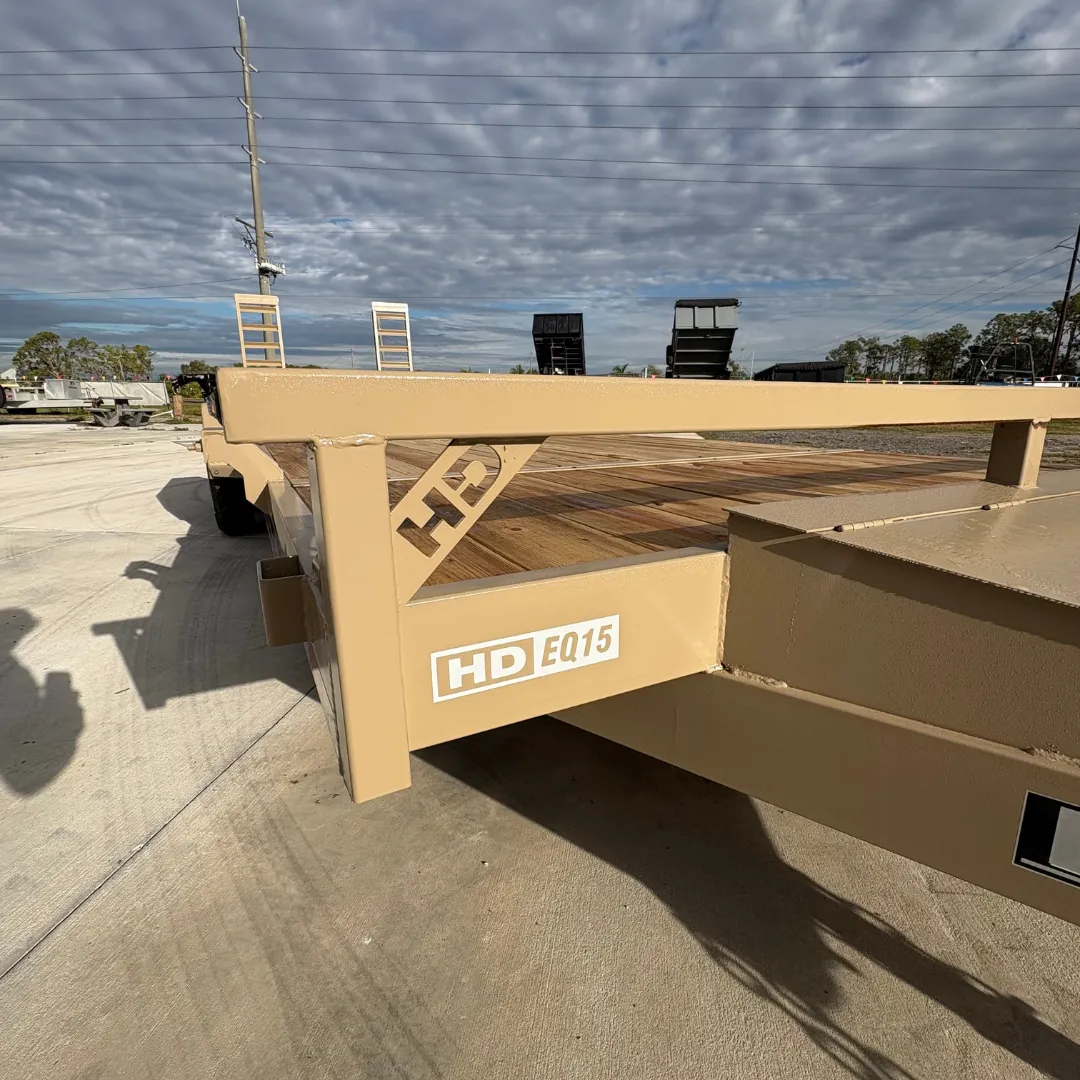

Side Rail: Standard 8″ bump rail
Fenders: Standard steel fenders

Rampd

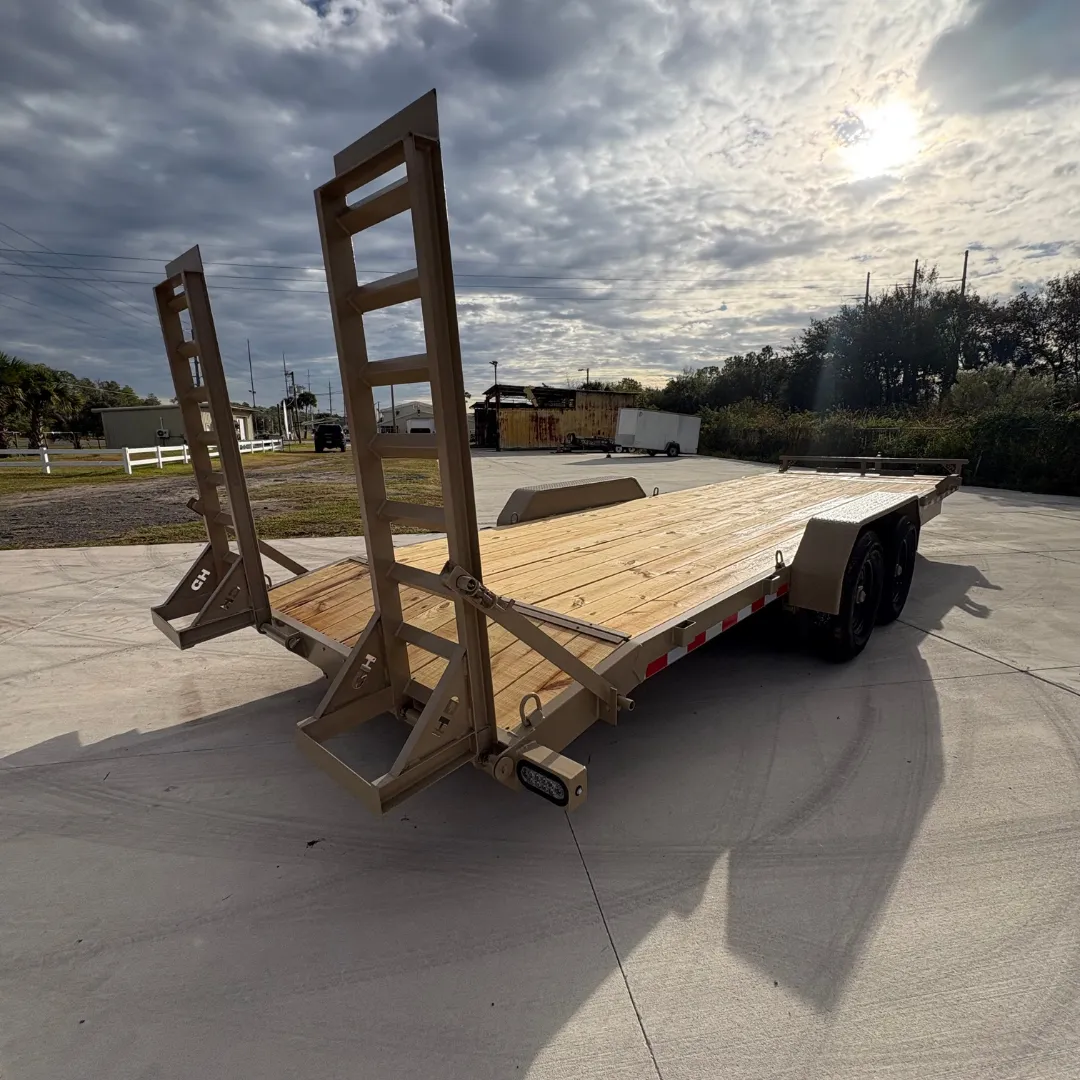

Ramp Type: Spring-assisted loading ramps
Ramp Size: 25″ W × 60″ L
Ramp Main: 3″ channel with back strap
Ramp Rungs: 2″ angle – 21-7/8″

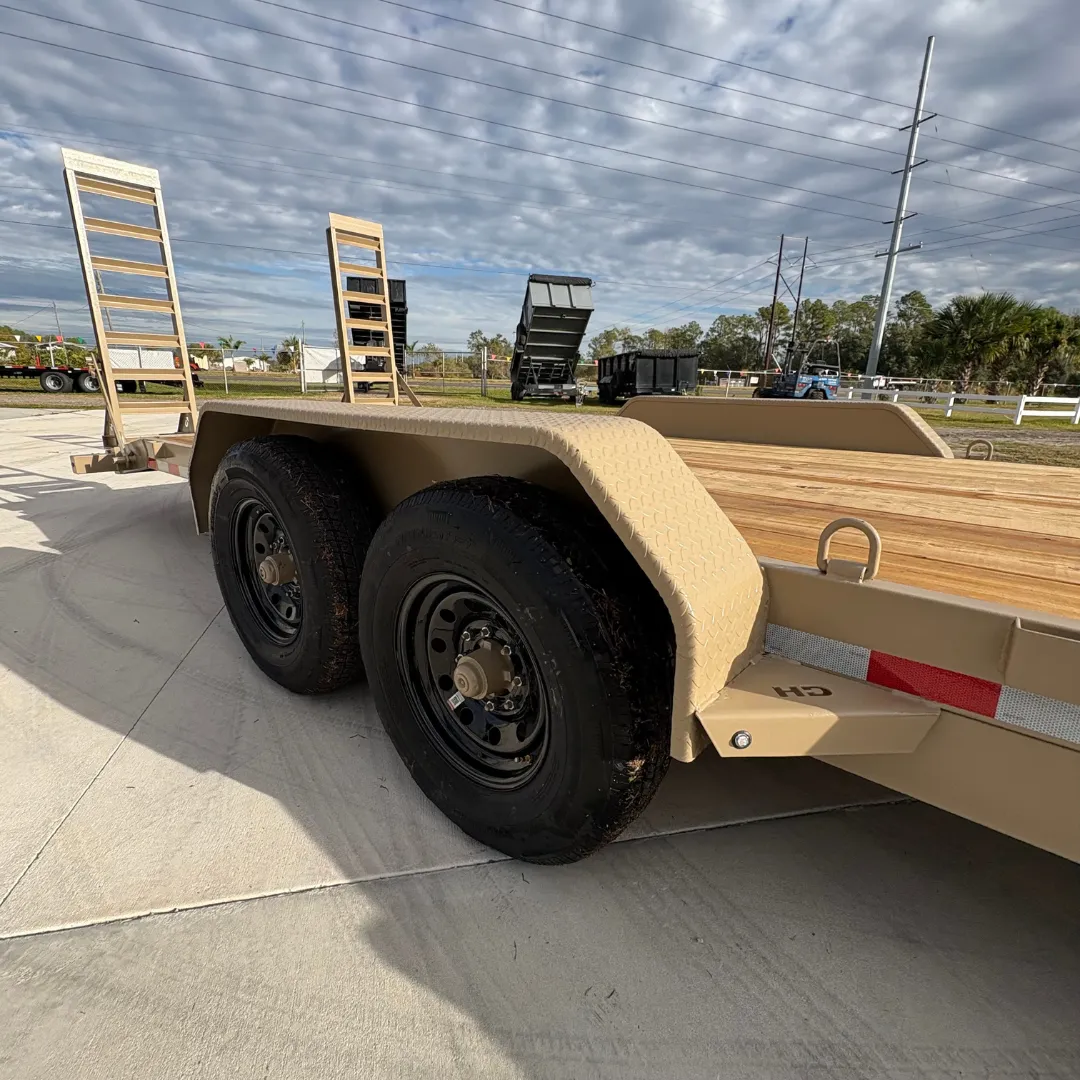

Axles & Running Gear

Axles: (2) 7,000 lb 8-lug (80/95)
Axle Center: 173″
Spring Centers: 80″
Brakes: Electric brakes on both axles
Suspension: Tandem L-hanger kit (common)
Tires: 235/80R16 10-ply
Wheels: 8-lug
Spare Tire: Not included (side-mount bracket installed)

Towing & Controls

Coupler: Adjustable 21K
Jack: 12K drop-foot
Safety Chains: Medium 5/16″
Light Brackets: Rectangular EQ-style
Wiring: Sealed wiring – installed at final assembly

Additional Features

Tie-Downs: Eight D-rings + stake pocket at 4′
Toolbox: Tongue-mounted toolbox
Winch Plate: Heavy-duty integrated winch mounting plate
Lighting: DOT-compliant LED
Spare Mount: Side-mounted

Built for Power, Durability & Professional Use

The 7×24 15K Equipment Trailer – Winch Plate edition is designed for operators who need a tough, dependable trailer with enhanced loading capabilities. With its spring-loaded ramps, strong channel-frame construction, integrated winch plate, and high-capacity axles, it’s built to perform on demanding jobsites and deliver long-term reliability.
