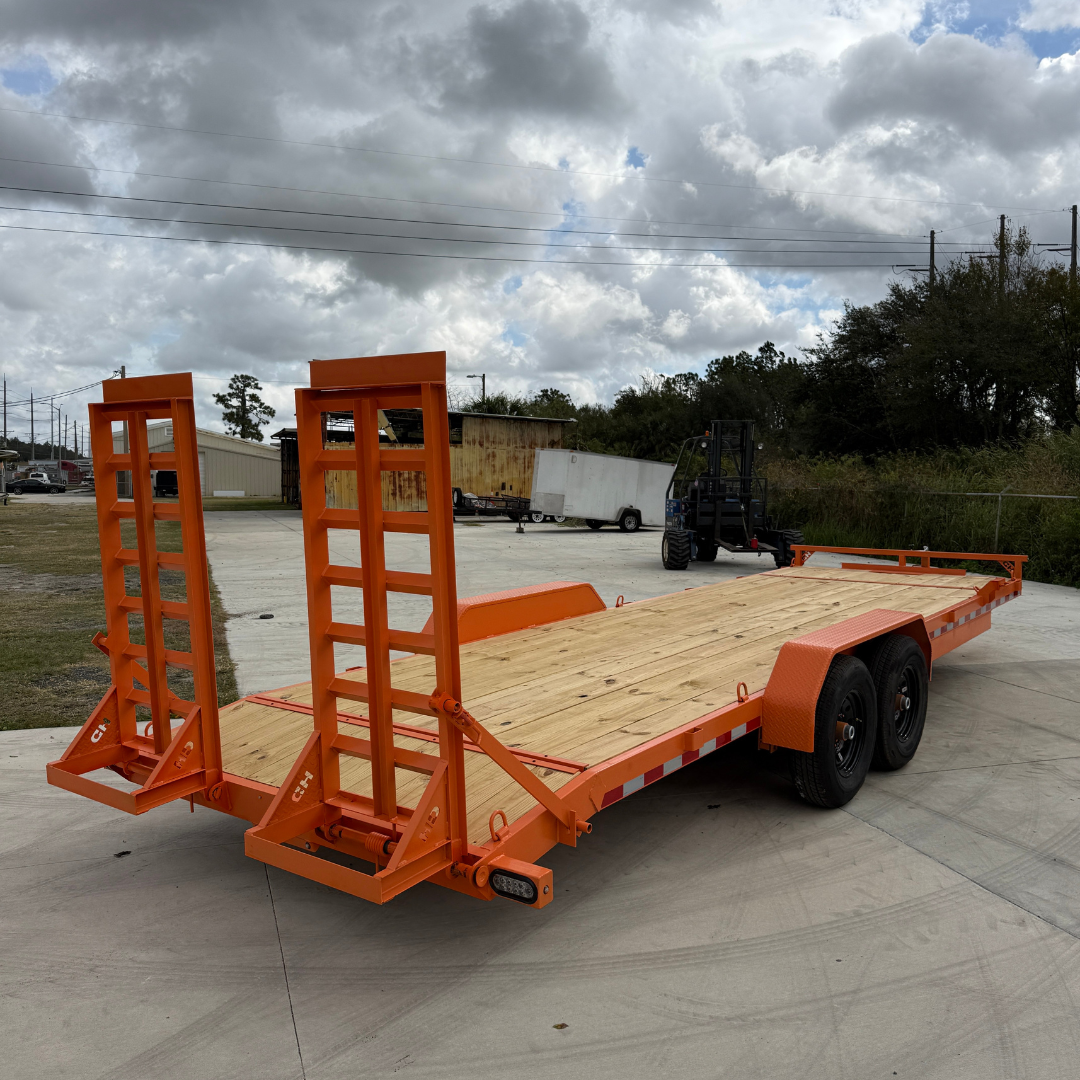

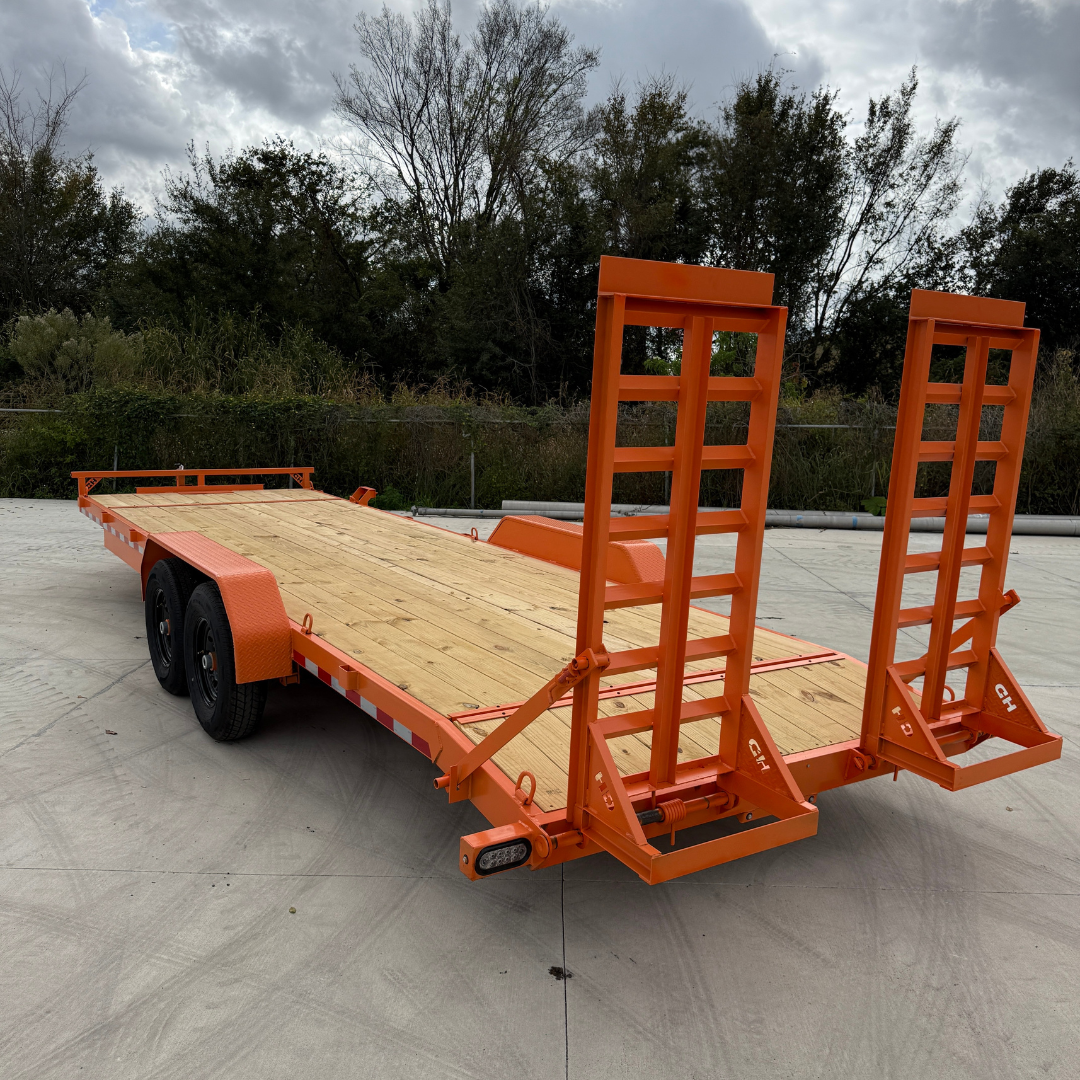

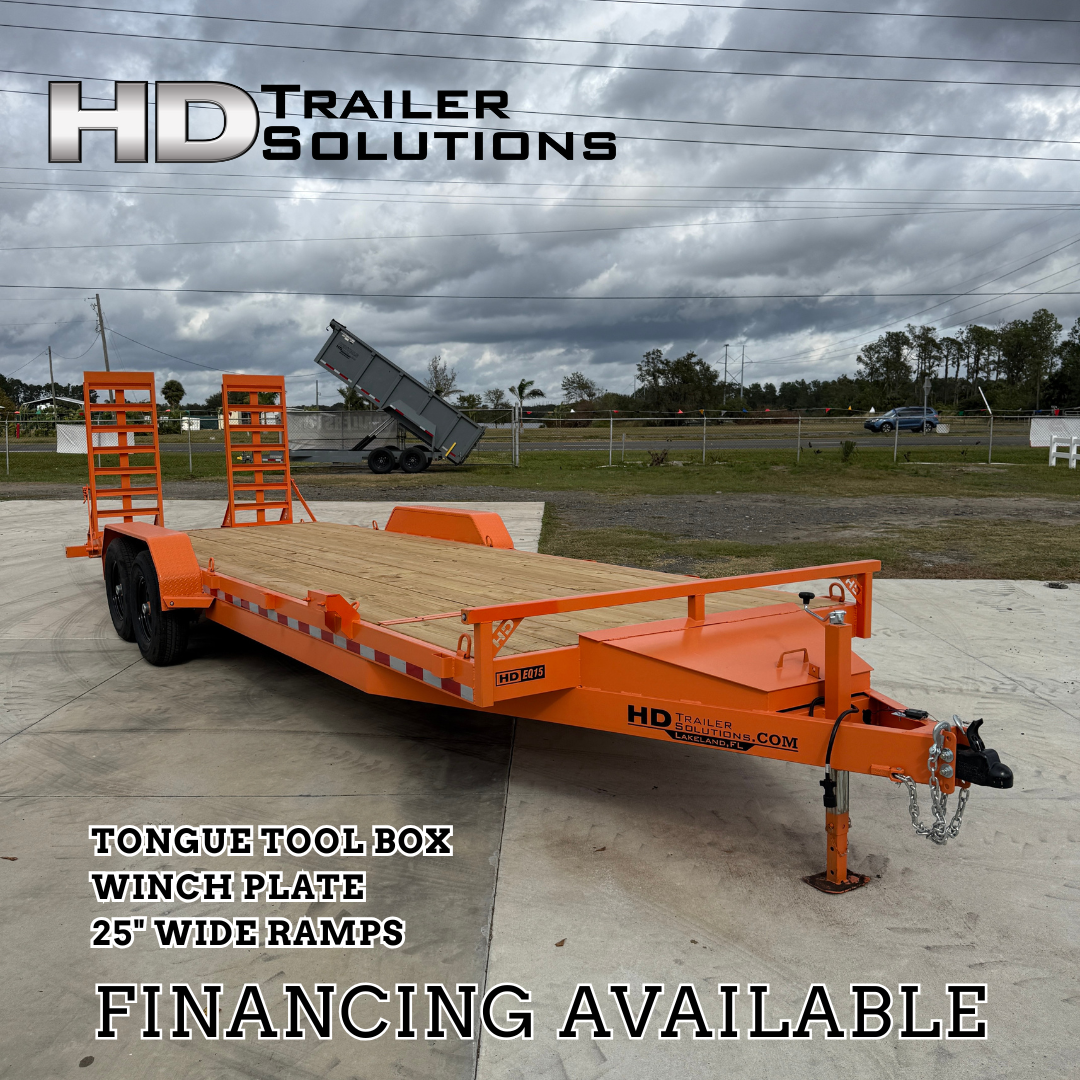

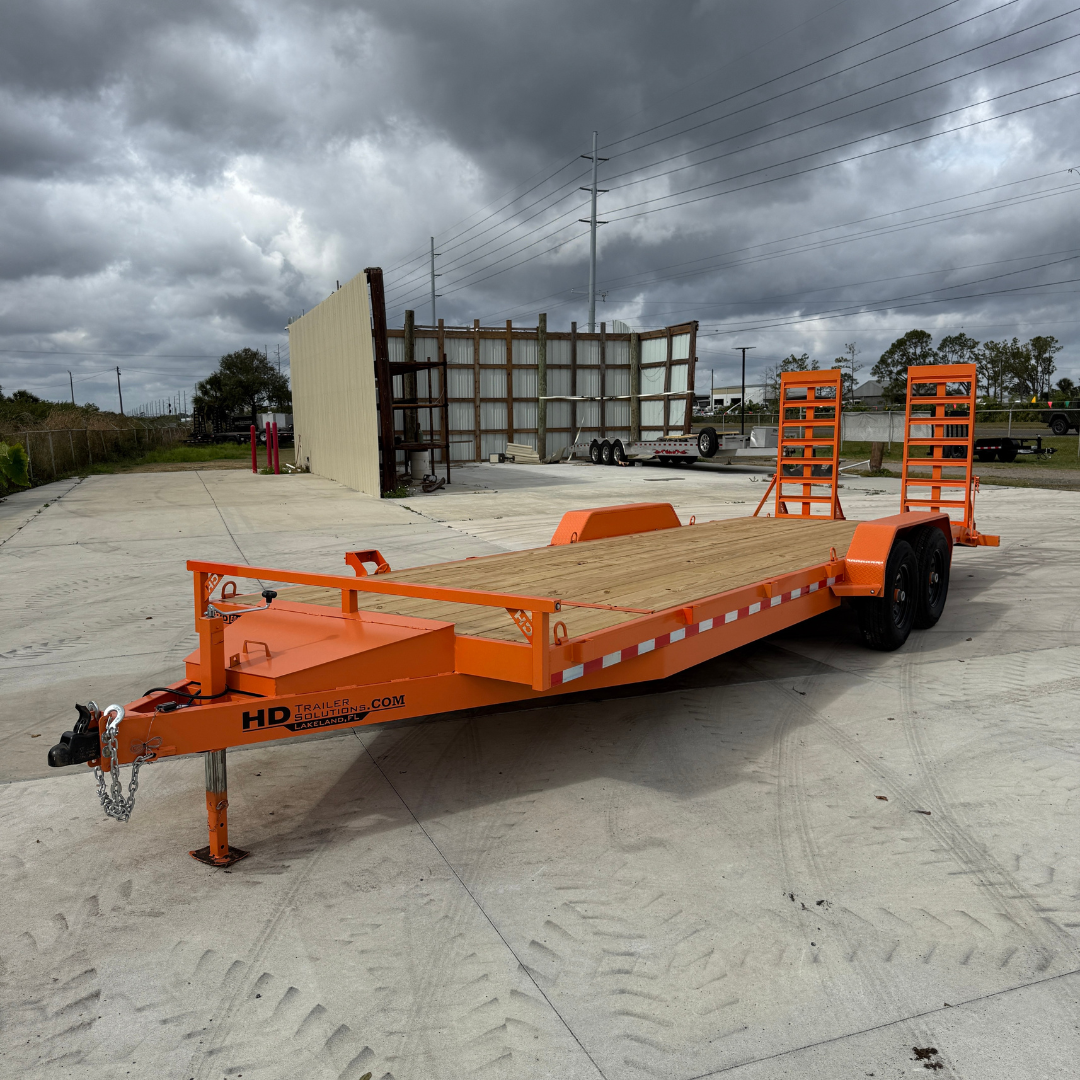

The 7×24 15k Equipment Trailer is engineered for professionals who need strength, durability, and dependable performance on every haul. Built on a full 6″ channel frame with a 24′ overall deck (22′ flat + 2′ dovetail), this trailer is ideal for transporting skid steers, compact tractors, attachments, and jobsite equipment.

Featuring tandem 7,000 lb braking axles, an 8″ bump rail, spring-assisted loading ramps (25″W × 60″L), and a fully welded 6″ channel tongue, this model is designed for serious commercial use. Eight welded D-rings and stake pockets at the 4′ marks provide versatile and secure tie-down options. A 12K drop-foot jack, adjustable 21K coupler, and side-mounted spare-tire bracket round out a highly capable professional-grade setup.

A tongue-mounted toolbox and integrated winch plate come standard, giving operators convenient storage and recovery capability. Finished in bright orange paint, this trailer stands out while delivering long-term corrosion protection.

Key Specifications

Frame & Structure

Main Frame: 6″ channel (24′ total)
Front End Channel: 78-1/4″ – 6″ channel
Rear End Channel: 82″ – 6″ channel
Crossmembers: 81-5/8″ – 3″ channel (×18)
Tongue: 191″ – 6″ channel (×2)
Decking: Wood plank deck
Side Rail: Standard 8″ bump rail
Fenders: Standard steel fenders
Dovetail: 2′ with integrated ramp mount

Ramps

Type: Spring-assisted loading ramps
Ramp Size: 25″W × 60″L
Ramp Main: 3″ channel with back strap
Ramp Rungs: 2″ angle – 21-7/8″

Axles & Running Gear

Axles: (2) 7,000 lb 8-lug (80/95)
Axle Center: 173″
Spring Center: 80″
Brakes: Electric brakes on both axles
Suspension: L-tandem hanger kit (common)
Tires: 235/80R16 10-ply
Wheels: 8-lug
Spare Tire: Not included (side-mount bracket installed)

Towing & Controls

Coupler: Adjustable 21K
Jack: 12K drop-foot
Safety Chains: Medium 5/16″
Toolboxes:

• Tongue toolbox 1 (+0.75 pts)

• Tongue toolbox 2 (+1.5 pts)
  Winch Plate: Integrated heavy-duty winch mounting plate

Electrical & Finish

Lighting: Rectangular EQ-style brackets (LED during final assembly)
Wiring: Installed during final assembly

Tie-Downs

D-Rings: 8 welded
Stake Pockets: At 4′ intervals

Built for Commercial Performance

The 7×24 HD Equipment Trailer combines a 6″ channel frame, reliable 7K braking axles, spring-assisted ramps, and strong tie-down infrastructure to create a work-ready hauling solution. Purpose-built for daily commercial use, this trailer delivers dependable performance for construction, landscaping, agriculture, and equipment transport operations.
