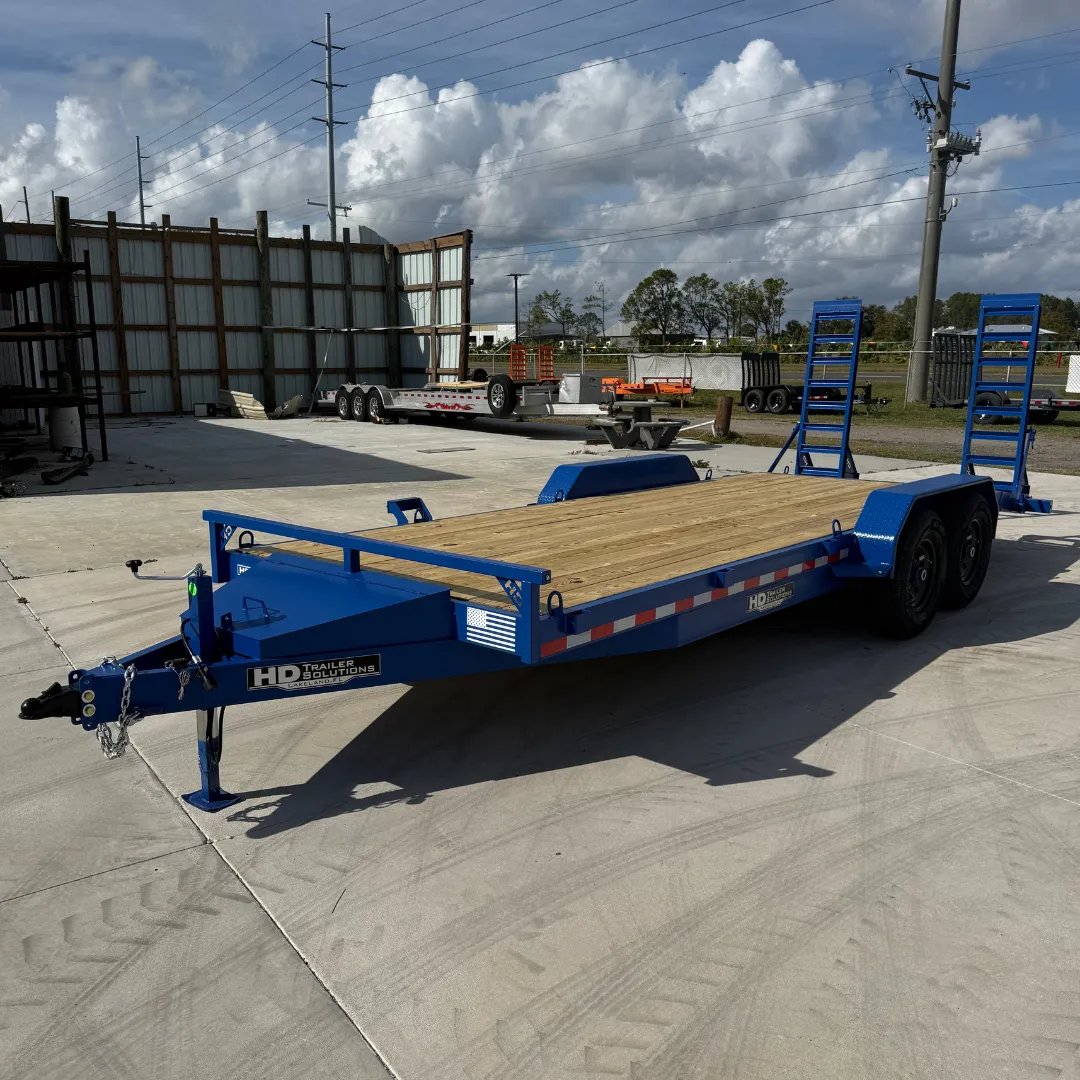

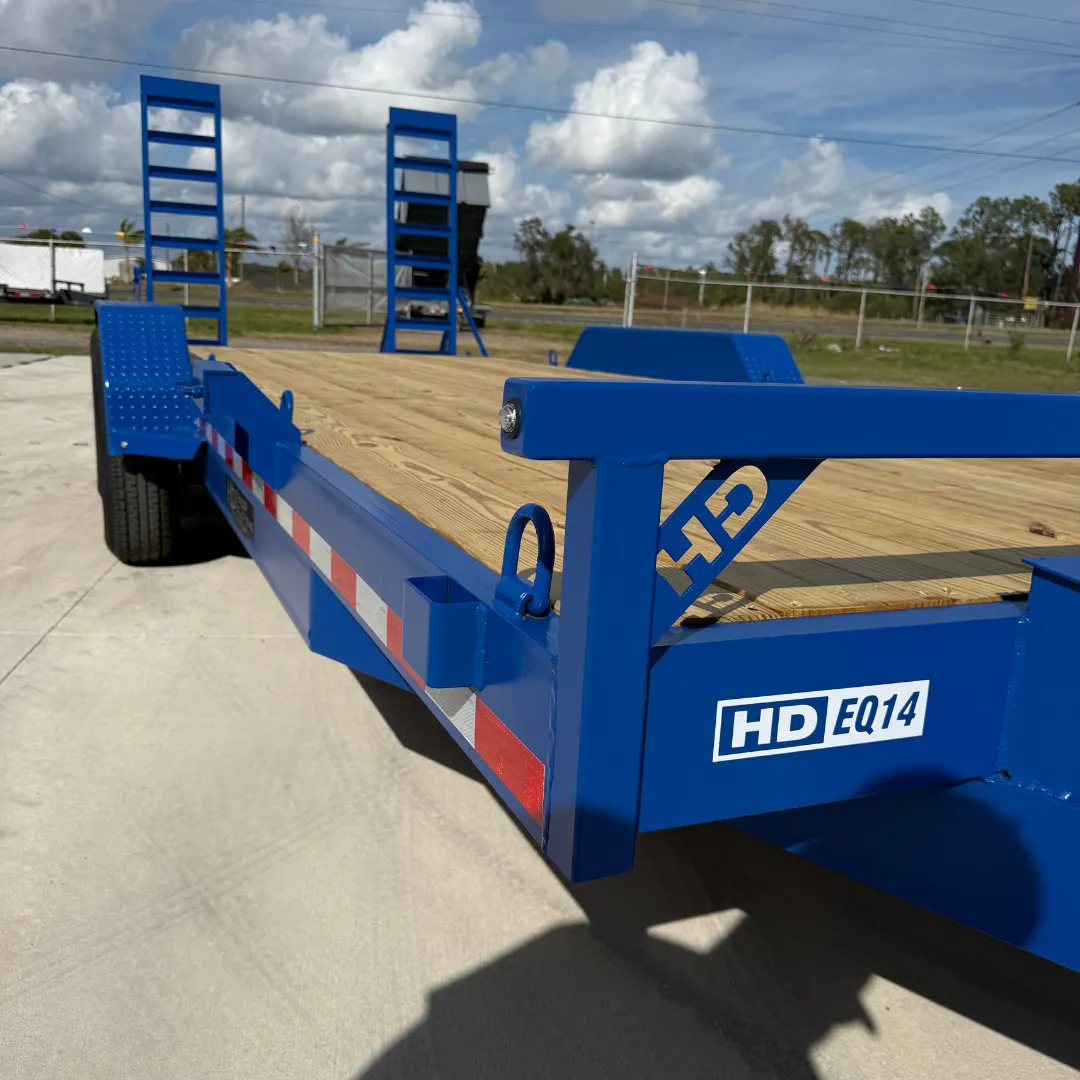

The 7×20 14K Equipment Trailer is a heavy-duty, versatile, and reliable solution designed for contractors, equipment operators, and professionals who need dependable daily hauling performance. Built on a full 6″ channel frame with a reinforced 18′ deck plus 2′ dovetail, this trailer delivers the strength required for hauling skid steers, tractors, attachments, construction materials, and medium equipment with confidence.

Constructed with 15 crossmembers on 16″ centers, a full 6″ channel tongue, wood decking, and tandem 7,000 lb braking axles, this model is engineered for stability and long-term durability. The non-spring 18″×60″ loading ramps provide robust loading capability, while eight welded D-rings and stake pockets at the 4′ mark ensure secure tie-down options for a wide range of loads.

Finished in a bold, high-visibility blue automotive-grade enamel, this trailer stands out on any jobsite while delivering reliable, no-nonsense performance.

Key Specifications

Frame & Structure

Main Frame: 20′ – 6″ channel (×2)
Front End Channel: 78-1/4″ – 6″ channel
Rear End Channel: 82″ – 6″ channel
Crossmembers: 81-5/8″ – 3″ channel (×15)
Tongue: 162″ – 6″ channel (×2)
Decking: Wood plank deck
Side Rail: Standard 8″ bump rail
Fenders: Standard steel fenders

Ramps & Rear Gate

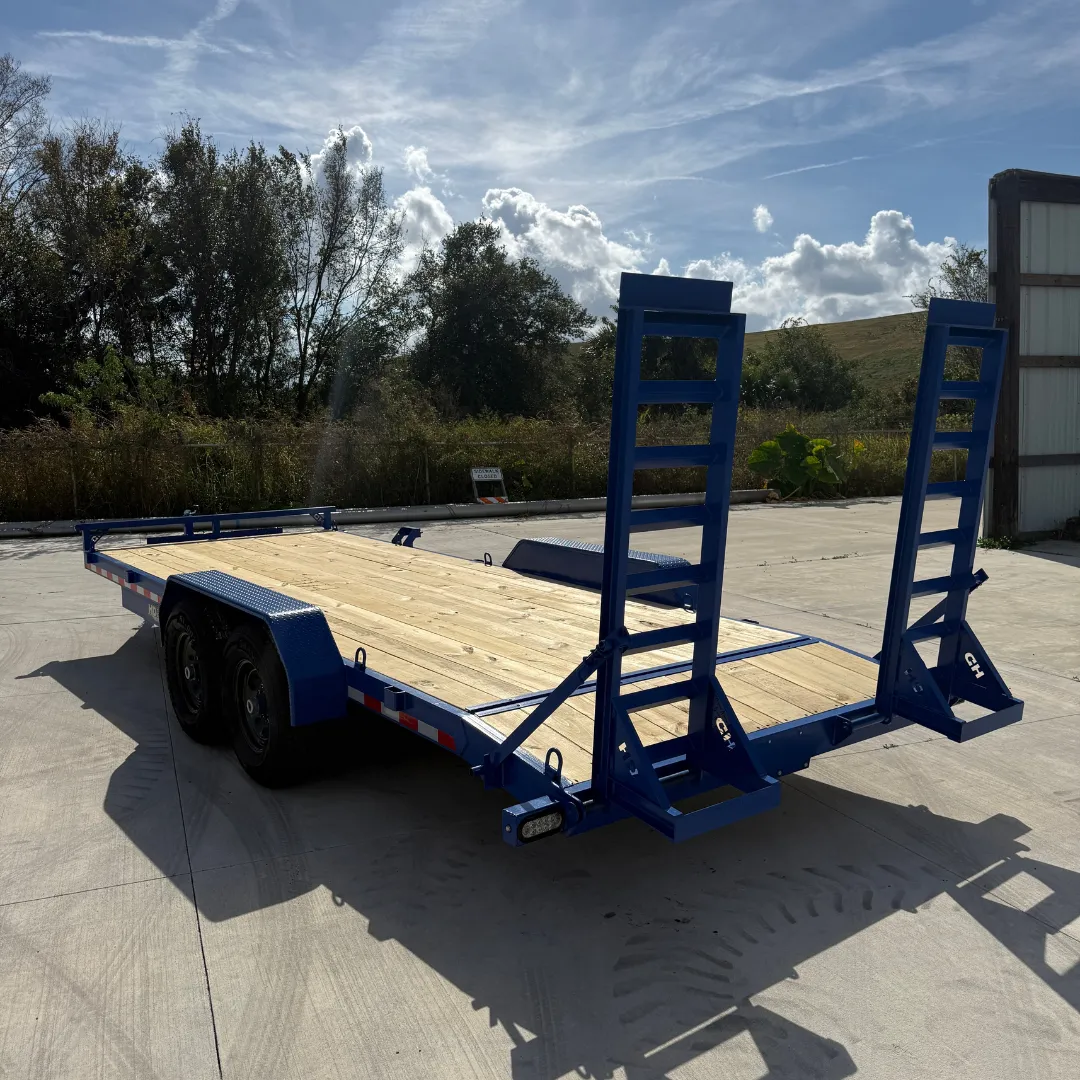

Ramp Type: Non-spring loading ramps
Ramp Size: 18″ W × 60″ L
Ramp Main: 3″ channel
Ramp Rungs: 2″ angle – 14-3/4″

Axles & Running Gear

Axles: (2) 7,000 lb 8-lug (80/95)
Axle Center: 144″
Spring Centers: 80″
Brakes: Electric brakes on both axles
Suspension: Tandem L-hanger kit (common)
Tires: 235/80R16 10-ply
Wheels: 8-lug
Spare Tire: Not included (side-mount bracket installed)

Towing & Controls

Coupler: Adjustable 14K
Jack: 8K drop-foot
Safety Chains: Medium 5/16″
Light Brackets: Rectangular EQ-style
Wiring: Installed during final assembly (sealed system)

Additional Features

Tie-Downs: Eight D-rings + stake pocket at 4′
Toolbox: Tongue-mounted toolbox
Lighting: DOT-approved LED
Spare Mount: Side-mounted

Built for Strength, Reliability & Professional Use

The 7×20 14K Equipment Trailer – Blue is engineered to meet the demands of daily jobsite work. With its 6″ channel construction, tandem braking axles, secure tie-down system, and heavy-duty loading ramps, this trailer offers the performance and confidence needed for hauling equipment safely and efficiently. A dependable workhorse designed to handle whatever the job requires.
