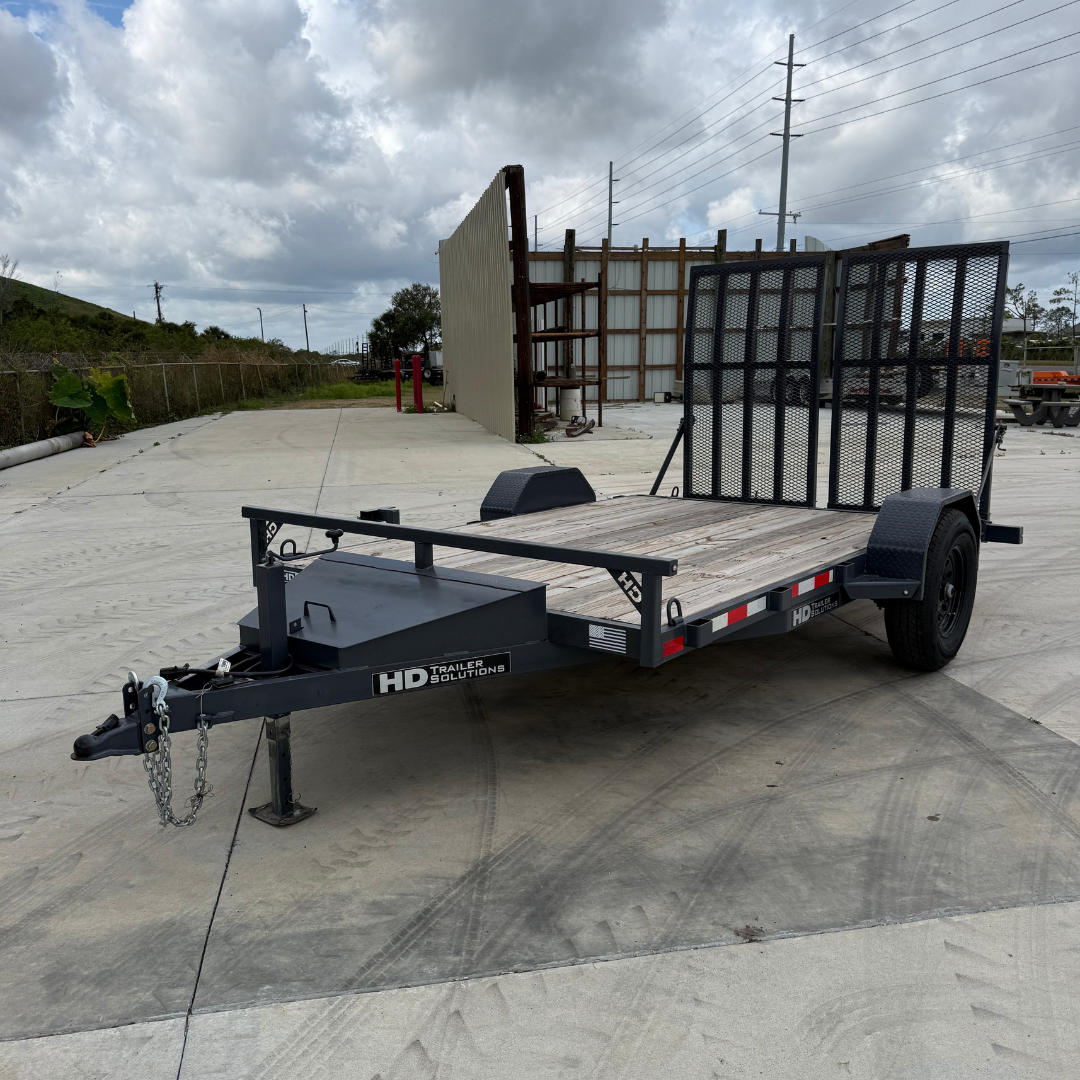

The 7×12 7K Equipment Trailer is a compact, reliable, and versatile hauling solution built for contractors, homeowners, and equipment operators who need dependable performance in a smaller footprint. Constructed with a full 4″ channel frame, wood deck, and a single 7,000 lb braking axle, this trailer is designed to deliver strength, stability, and long-term durability for everyday use.

Featuring a split-gate ramp system for easy loading, four welded D-rings with a stake pocket at the 4-ft mark, a side-mounted spare bracket, and an adjustable 14K coupler, this unit provides practical functionality for safely hauling small machinery, ATVs, lawn equipment, and jobsite tools. With a standard 8K drop-foot jack, sealed wiring, and reinforced single fenders, this trailer is engineered for consistent, trouble-free operation.

Key Specifications

Frame & Structure

Main Frame: 4″ channel
Front End Channel: 78-7/8″ – 4″ channel
Rear End Channel: 82″ – 4″ channel
Crossmembers: 81-5/8″ – 2×2×10 angle
Tongue: 125″ – 4″ channel (×2)
Decking: Wood plank deck
Side Rail: None
Fenders: Single standard fenders

Ramps & Rear Gate

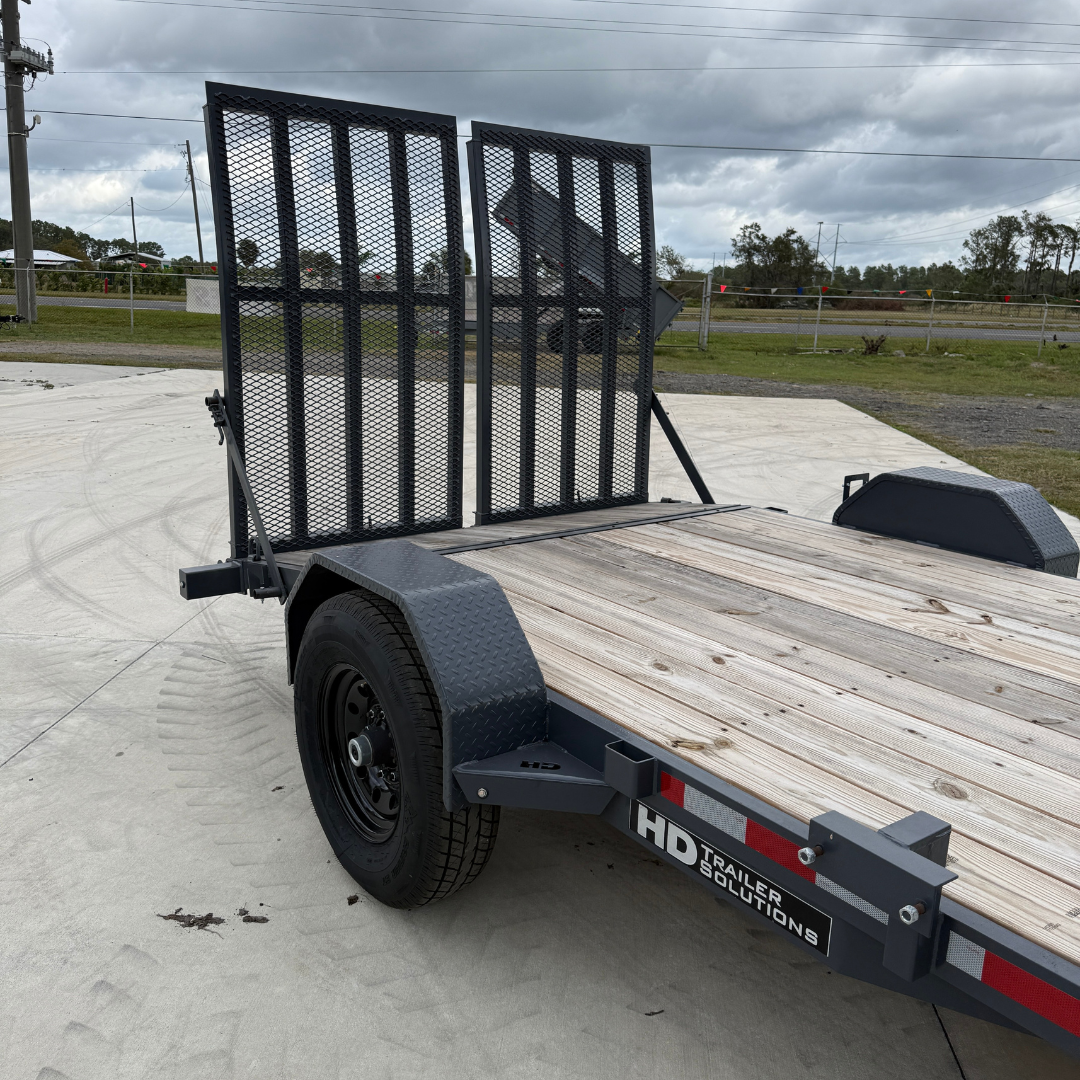

Ramp Type: Split-gate ramp
Ramp Mains: 2″ square tube – 52″ (×4)
Ramp Rungs: 2×3 angle – 30-1/2″ (×2)

Axles & Running Gear

Axle: One 7,000 lb 8-lug (80/95)
Axle Center: 86″
Spring Center: 80″
Brakes: Electric braking axle
Suspension: Medium tandem hanger kit

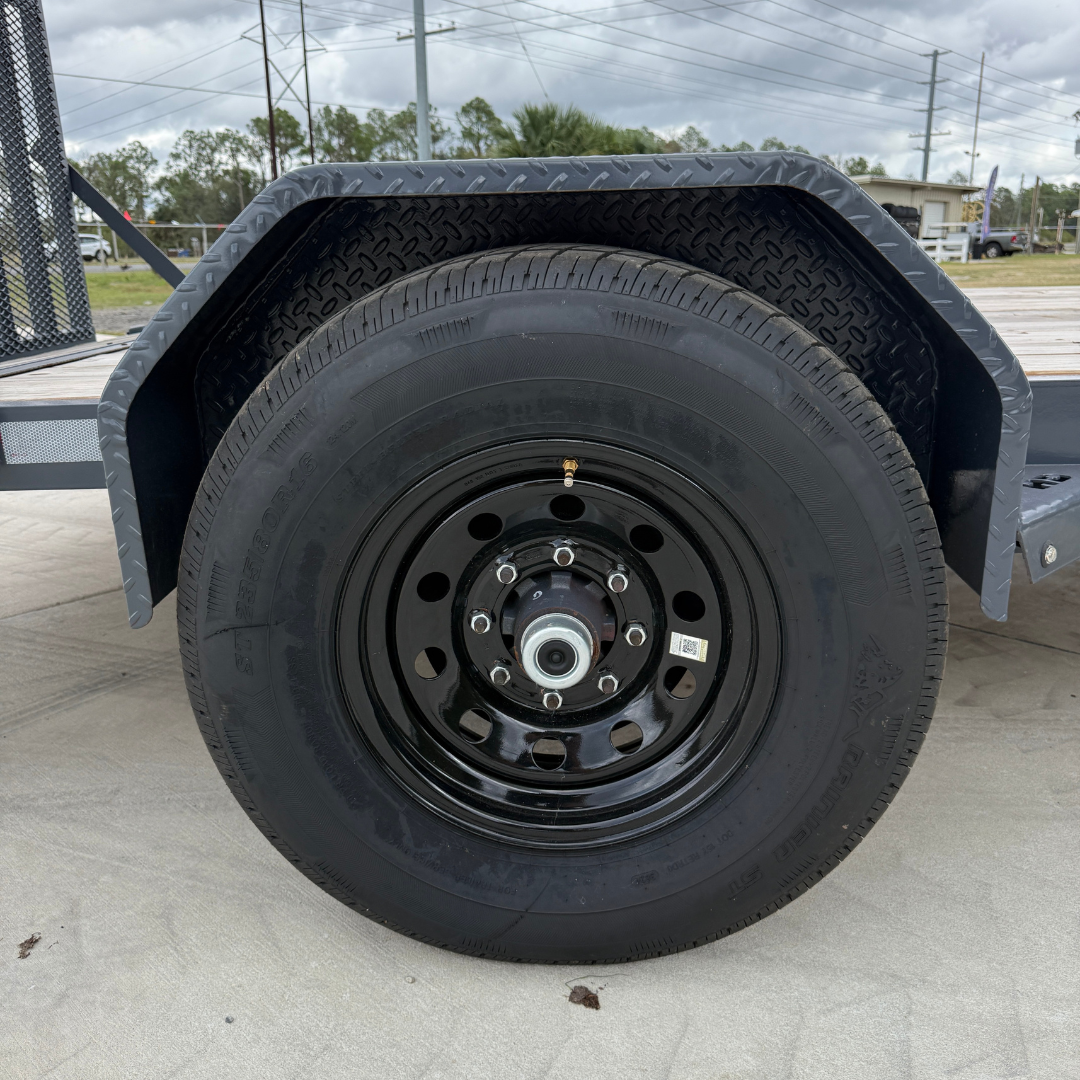

Tires: 235/80R16 10-ply
Wheels: 8-lug
Spare Tire: Not included (side-mount bracket installed)

Towing & Controls

Coupler: Adjustable 14K
Jack: 8K drop-foot
Safety Chains: Medium 5/16″
Light Brackets: Rectangular EQ-style
Wiring: Installed during final assembly (sealed system)

Additional Features

Tie-Downs: Four D-rings + stake pocket at 4′

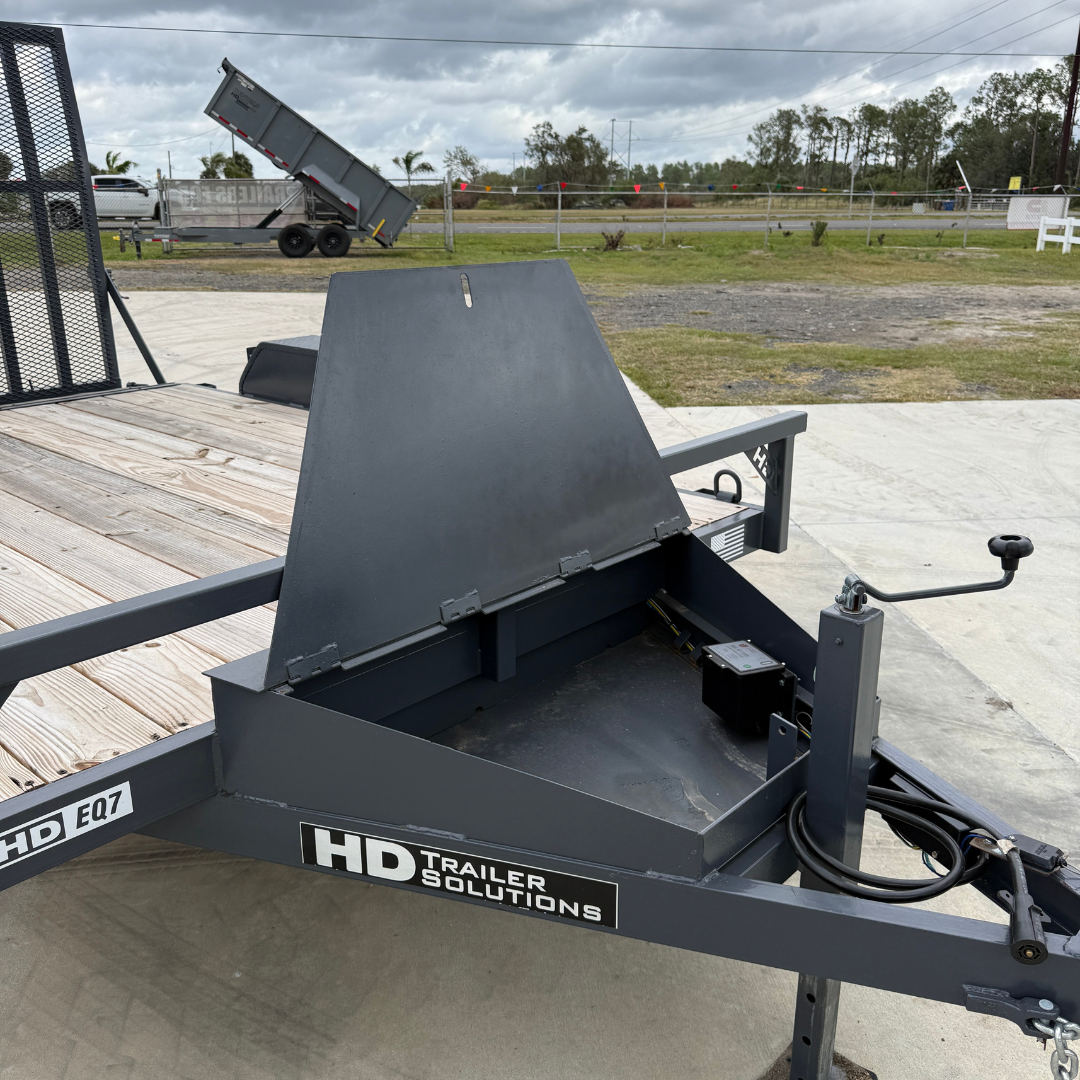

Toolbox: Tongue-mounted toolbox
Lighting: DOT-approved LED
Spare Mount: Side-mounted

Built for Versatility & Daily Use

The 7×12 7K Equipment Trailer delivers dependable performance in a compact, easy-to-maneuver package. With its durable channel-frame construction, split-gate loading system, and essential tie-downs, this trailer is perfect for small equipment, property maintenance, landscaping operations, and everyday hauling needs. Sturdy, simple, and reliable—built to get the job done.
