Available Sizes
|
GVWR
|
Payload Capacity
|
|---|---|---|
|
62" x 10'
|
10,000 lbs
|
8,050 lbs
|
|
62" x 12'
|
10,000 lbs
|
7,950 lbs
|

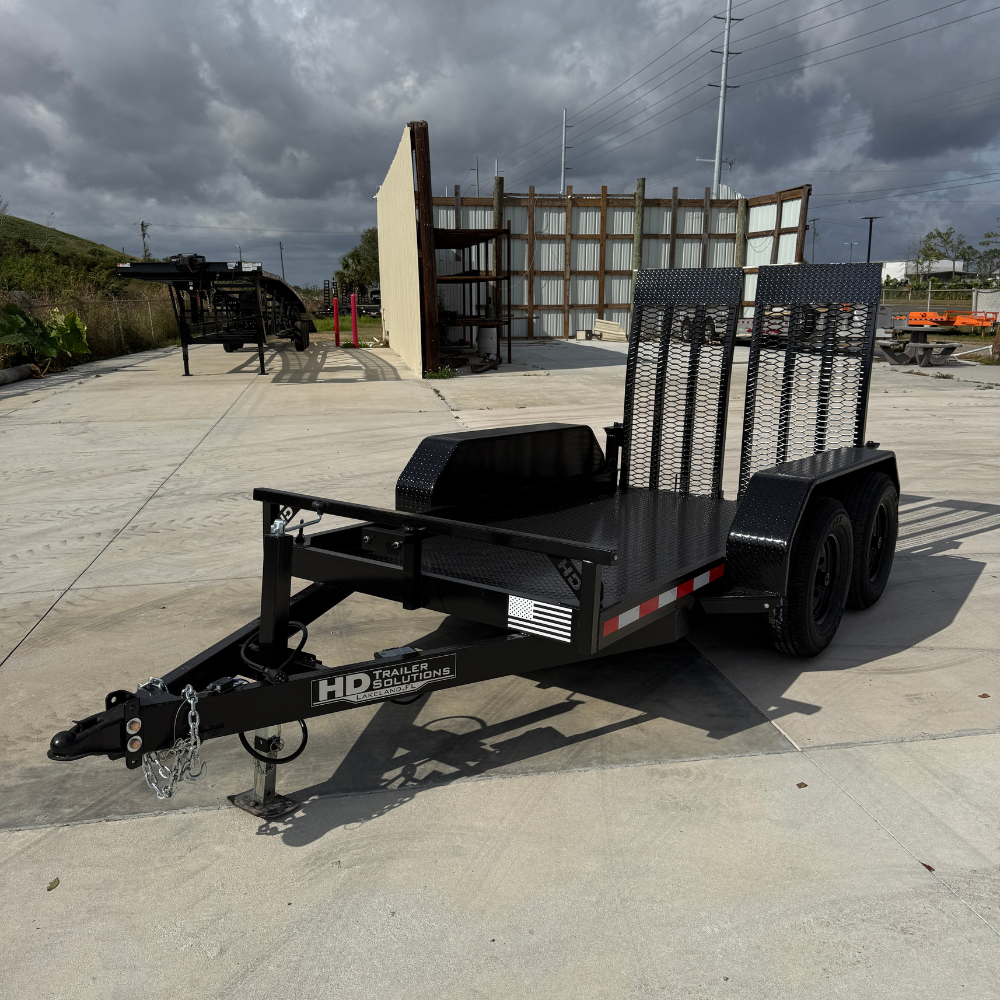

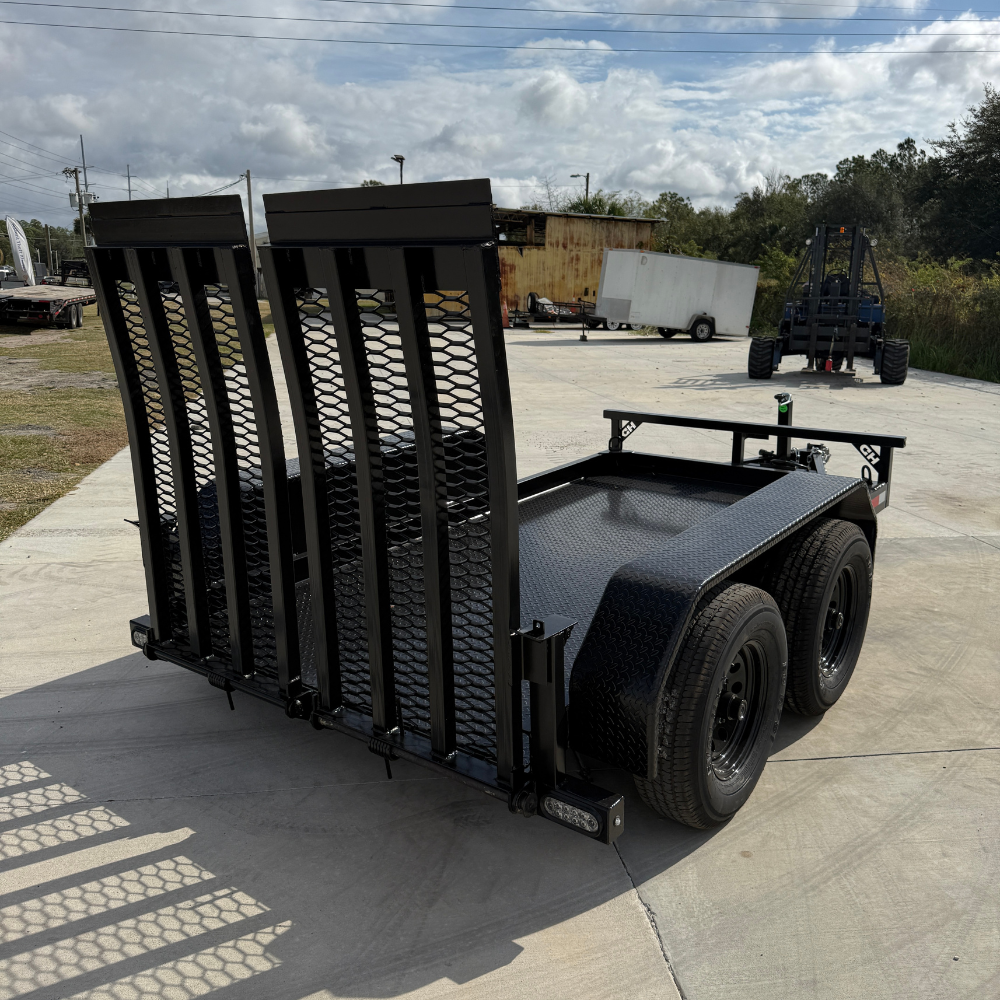

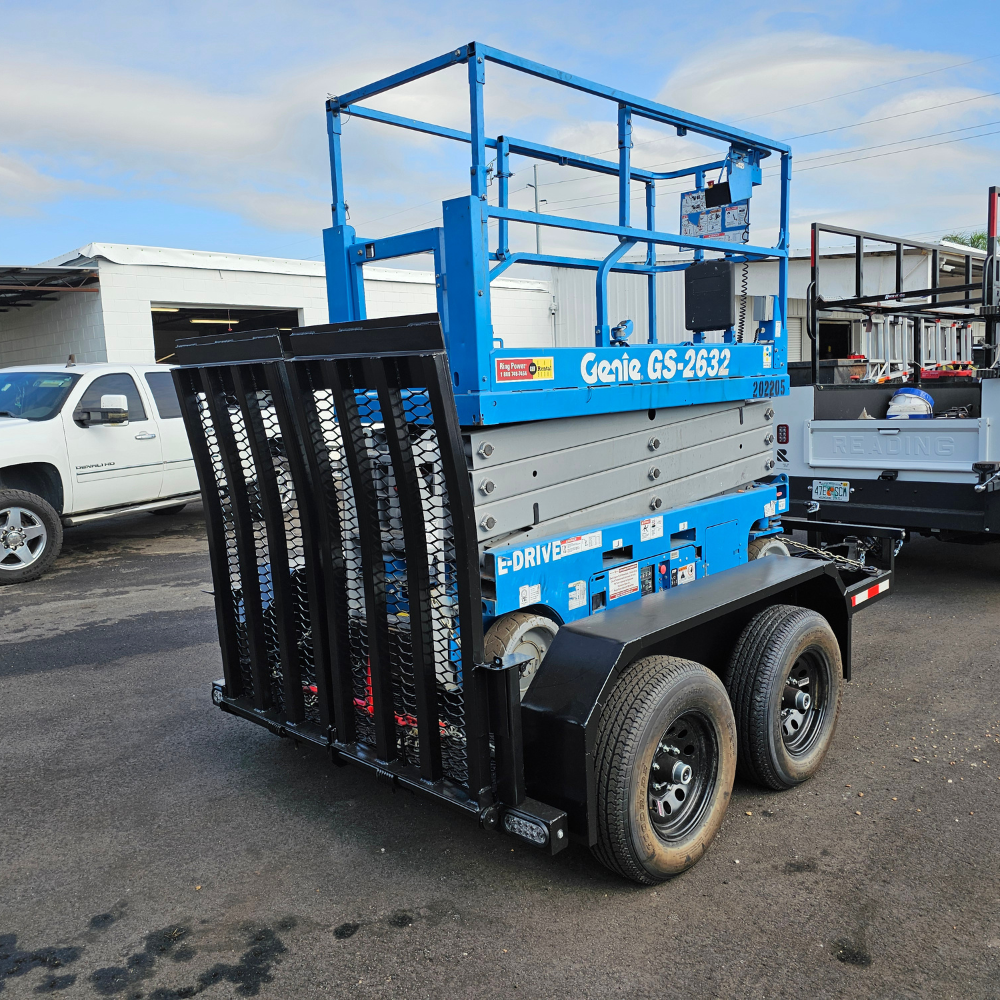

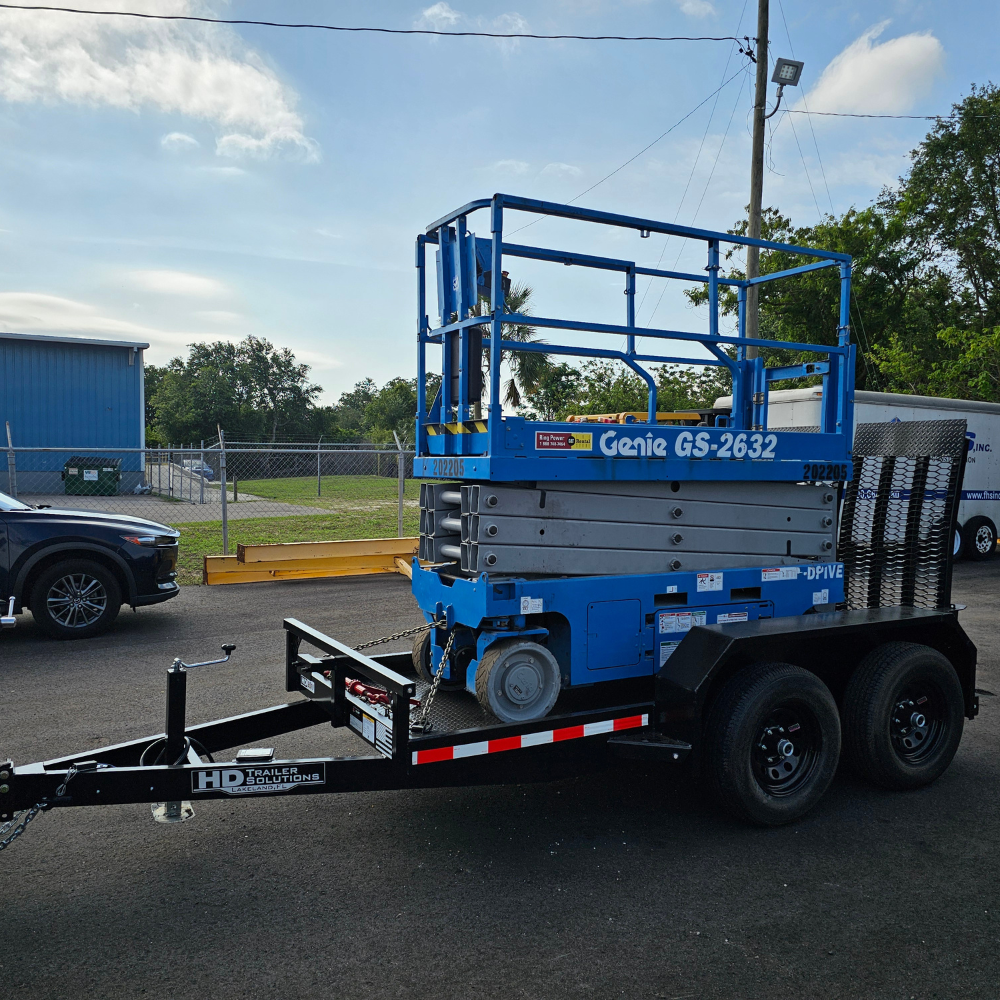

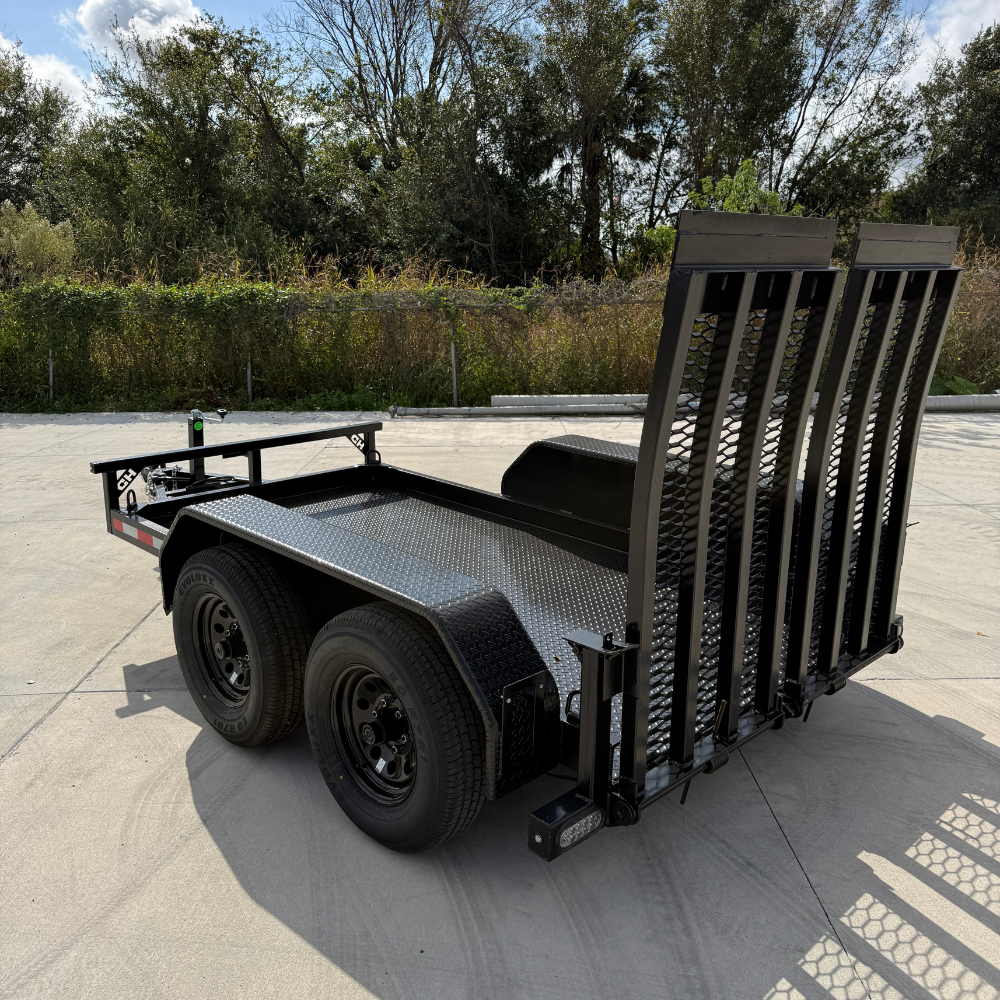

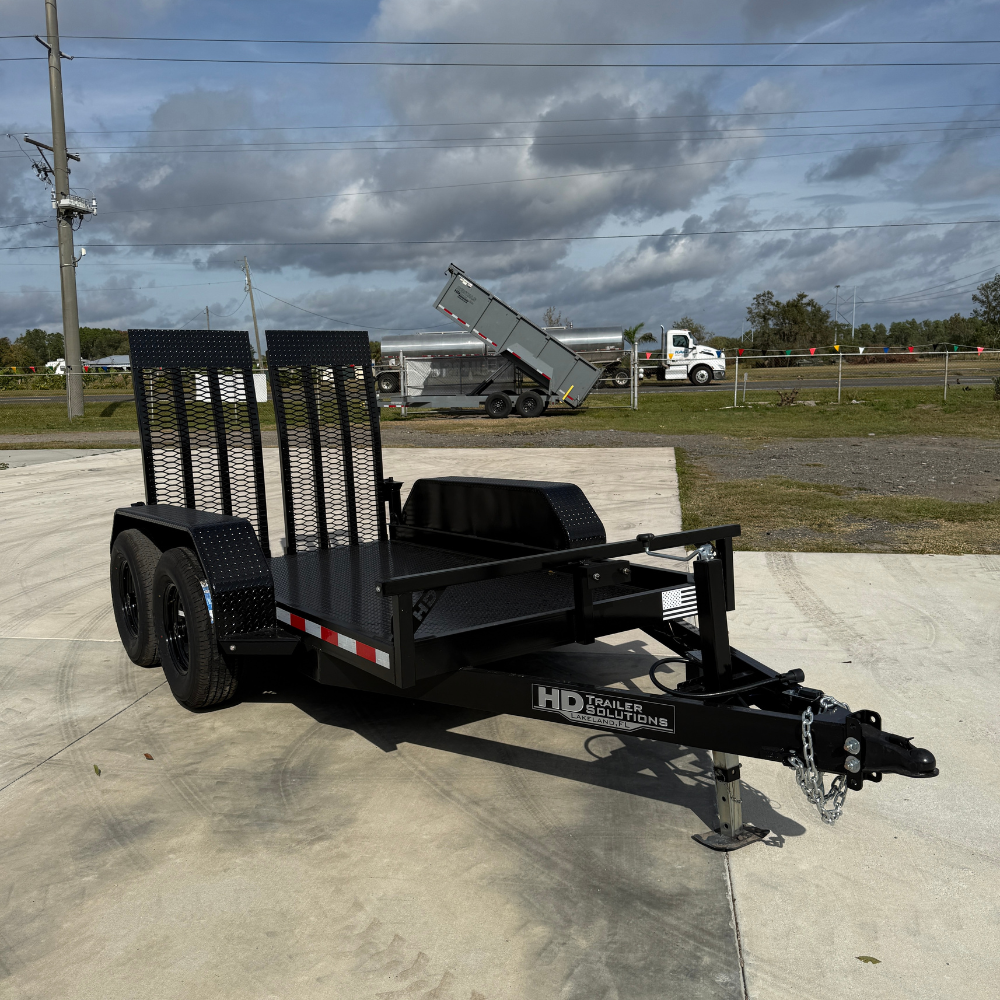

Our 10k Scissor lift Trailer provides the strength needed to complete those heavy hauls. Equipped with removable fold down ramps, equipment can also be loaded from the rear by forklift.
Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.

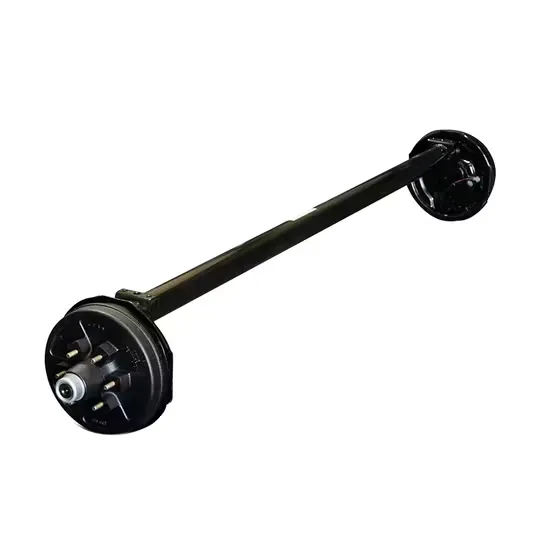

| Axles | Dul 6 Lug Torsion 62/77 5,200lb | View |
| Suspension: | Slipper Spring Suspension | |
| Brakes: | Electric brakes on all axles | |
| Tires: | 225/75R15 8 Ply | |
| Wheels: | 15" Rim 6 Lug | |
| Main Frame: | 5" Channel | |
| Tongue: | 5" Channel | |
| Cross Members: | Angle - 2 x 3 | |
| Deck width: | 62" between the fenders | |
| Overall trailer width: | 82 Inches | |
| Deck height: | Approximately 25" | |
| Side rails | N/A - flat deck with no rails | |
| Tie Downs: | 4 x D-rings & Stake pockets @ 4ft | |
| Coupler: | 14k Adjustable Coupler | |
| Jack: | 8k Drop foot | |
| Safety Chains: | 2 x 5/16in Chains | |
| Flooring: | Steel Tread Plate - 3/16" | |
| Fenders: | Dexter Tandem Fenders | |
| Lighting: | LED lighting | |
| Wiring: | Equipped with a sealed, automotive-grade wiring harness | |
| Safety Equipment: | Required break-a-way kit and DOT Safety Tape | |

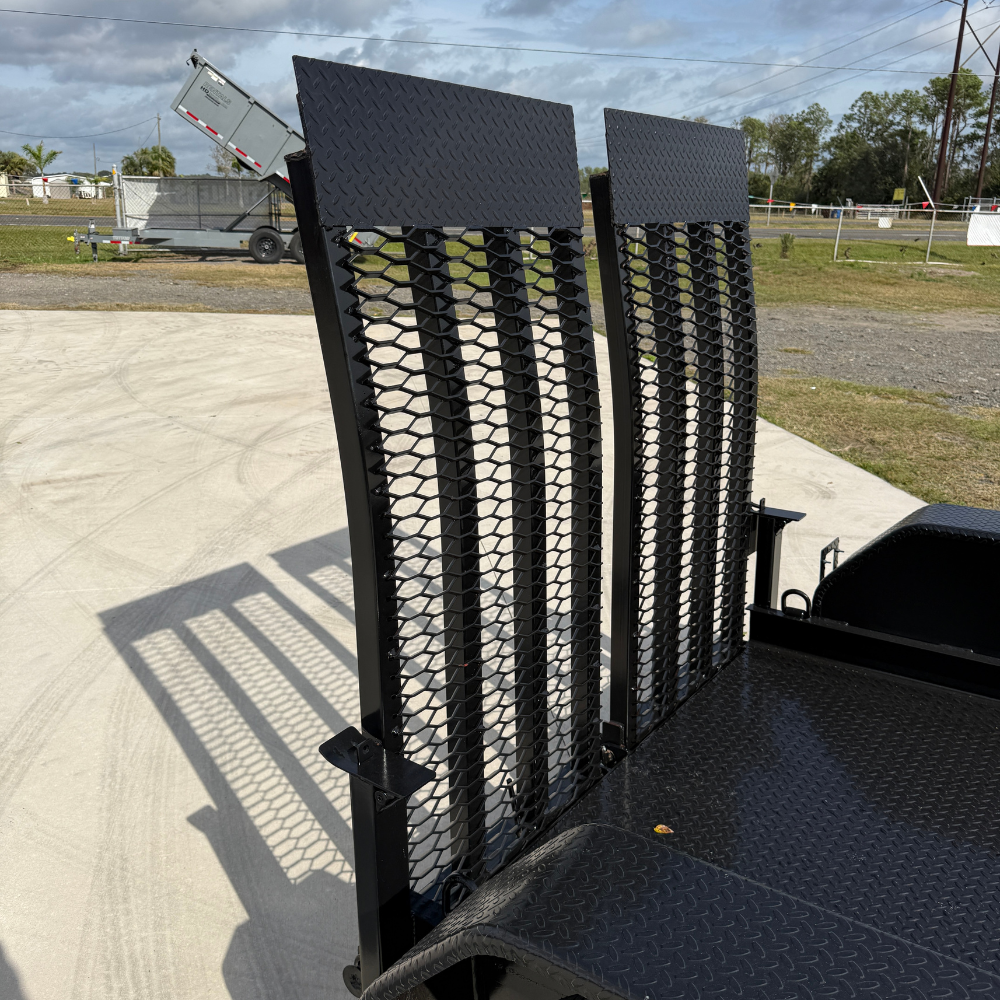

| Ramps: | Custom made Split Gate Ramps | |
| Finish: | 2 part industrial enamel coating | |
| Dovetail: | Not Dovetail |
| Reinforced Fenders | |
| Tongue Tool Box | Build in or Steel Box bolt in |
| Rub Rail | (unlimited tie down points) |
| D-rings | Choose the location |
| Custom Paint Color | |
| Upgrade to Aluminum Wheels | |
| Winch Mount | |
| Additional Stake Pockets | |
| 12k Jack | |
| 21k Adjustable Coupler |
|
Available Sizes
|
GVWR
|
Payload Capacity
|
|---|---|---|
|
7x16
|
14,000 lbs
|
11,450 lbs
|
|
7x18
|
14,000 lbs
|
11,235 lbs
|
|
7x20
|
14,000 lbs
|
11,020 lbs
|
|
7x22
|
14,000 lbs
|
10,805 lbs
|
|
7x24
|
14,000 lbs
|
10,590 lbs
|

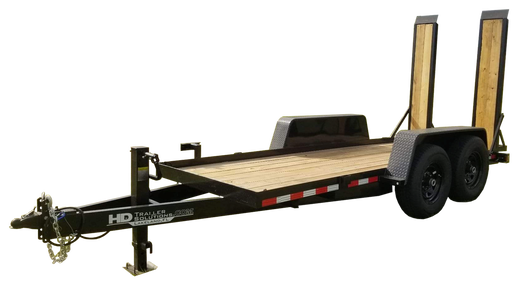

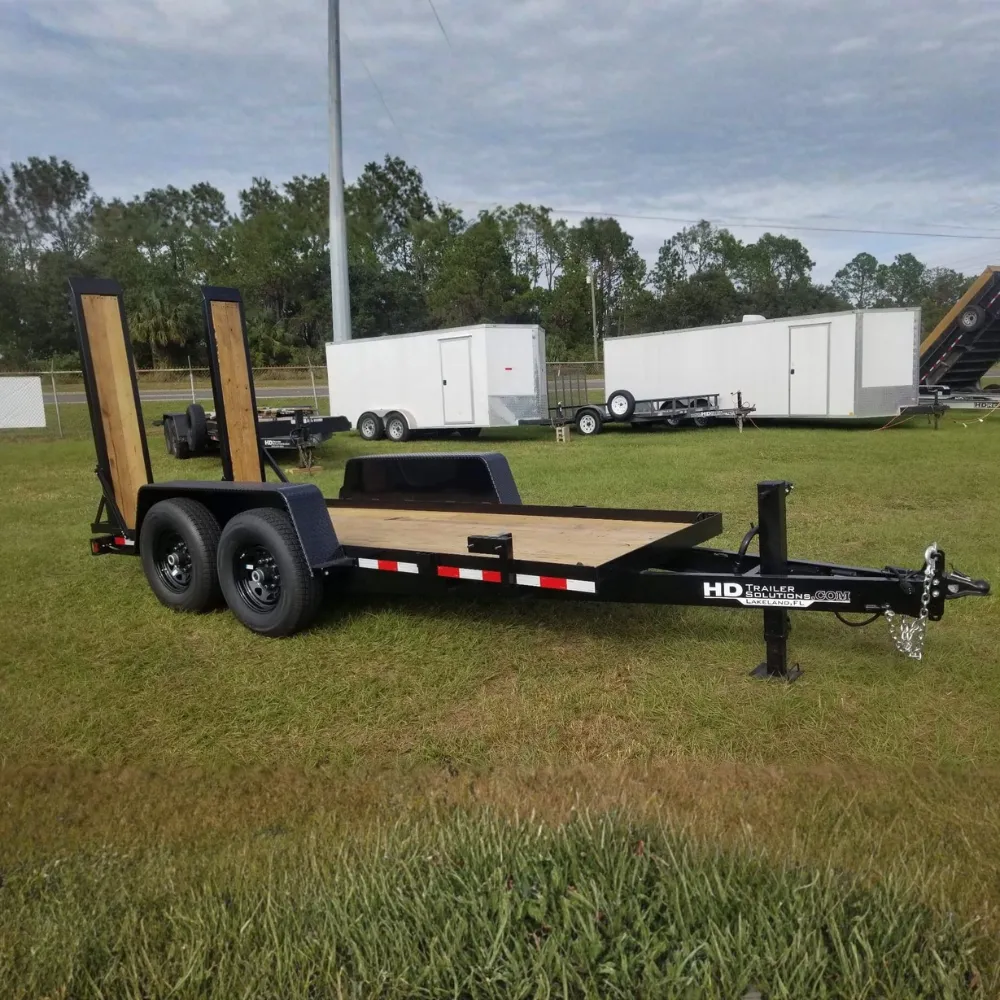

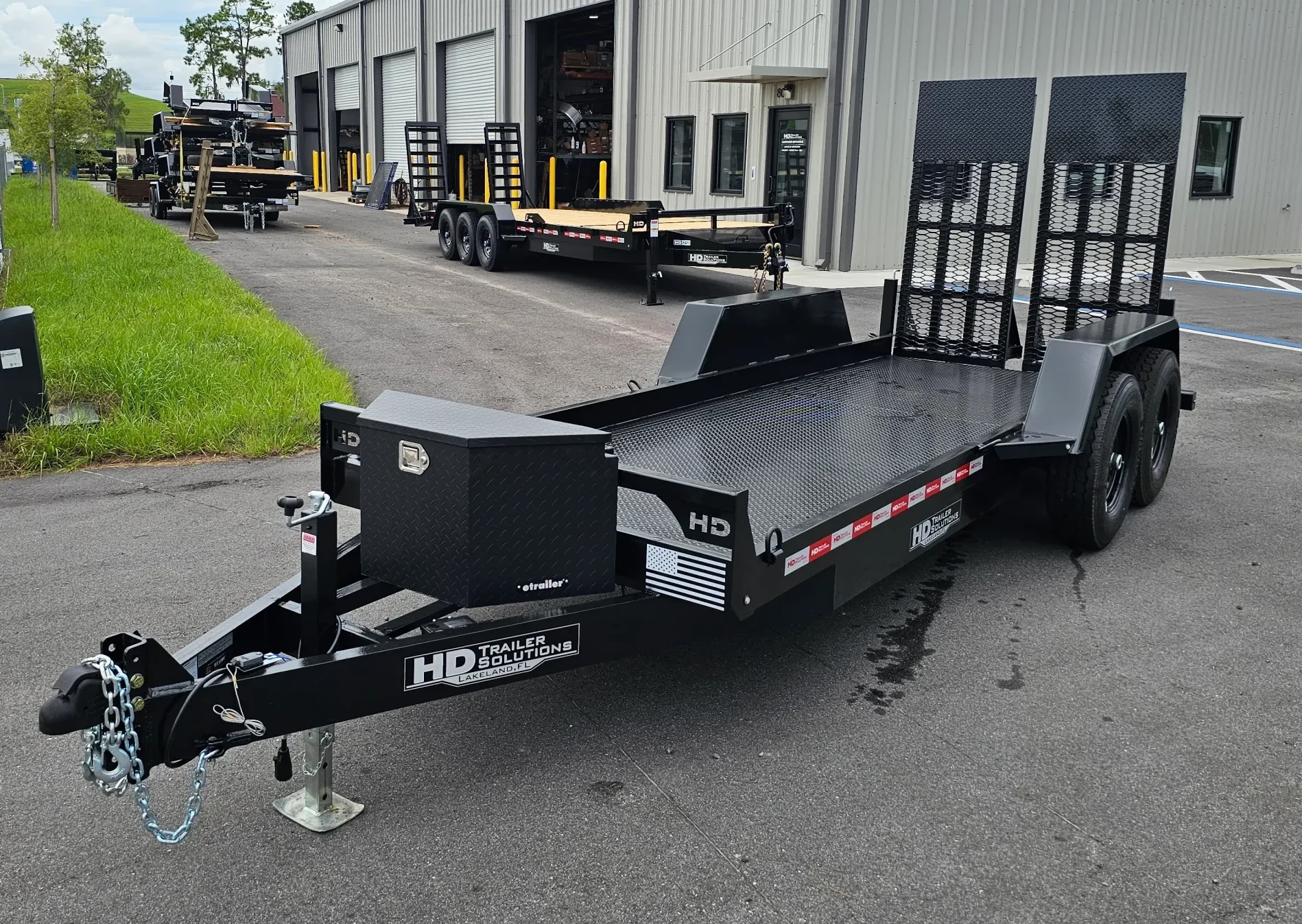

Our 14K Forklift Trailer is built to handle demanding, heavy-duty hauls with confidence. Featuring removable fold-down ramps, it also allows for easy rear loading with a forklift, giving you maximum flexibility on the job.
Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.
| Axles | Dual 7,000 lb (electric brakes on both) | View |
| Suspension: | Slipper Spring Suspension | |
| Brakes: | Electric brakes on all axles | |
| Tires: | 235/80R16 10 Ply | |
| Wheels: | 16" Rim 8 Lug | |
| Main Frame: | 6" Channel | |
| Tongue: | 6" Channel | |
| Cross Members: | 3" Channel | |
| Deck width: | 62" between the fenders | |
| Overall trailer width: | 82" Inches | |
| Deck height: | Approximately 25" | |
| Side rails | N/A - flat deck with no rails | |
| Tie Downs: | 4 x D-rings & Stake pockets @ 4ft | |
| Coupler: | 14k Adjustable Coupler | |
| Jack: | 8k Drop foot | |
| Safety Chains: | 2 x 5/16in Chains | |
| Flooring: | 2" Pressure treated wood | |
| Fenders: | Dexter Tandem Fenders | |
| Lighting: | LED lighting | |
| Wiring: | Equipped with a sealed, automotive-grade wiring harness | |
| Safety Equipment: | Required break-a-way kit and DOT Safety Tape | |
| Ramps: | Custom Forklift Ramps | |
| Finish: | 2 part industrial enamel coating | |
| Dovetail: | Not Dovetail |
| Reinforced Fenders | |
| Tongue Tool Box | Build in or Steel Box bolt in |
| Rub Rail | (unlimited tie down points) |
| D-rings | Choose the location |
| Custom Paint Color | |
| Upgrade to Aluminum Wheels | |
| Winch Mount | |
| Additional Stake Pockets | |
| 12k Jack | |
| 21k Adjustable Coupler |
