Available Sizes
|
GVWR
|
Payload Capacity
|
|---|---|---|
|
7x16
|
12,000 lbs
|
9,510 lbs
|
|
7x18
|
12,000 lbs
|
9,397 lbs
|
|
7x20
|
12,000 lbs
|
9,285 lbs
|
|
7x22
|
12,000 lbs
|
9,205 lbs
|
|
7x24
|
12,000 lbs
|
9,125 lbs
|

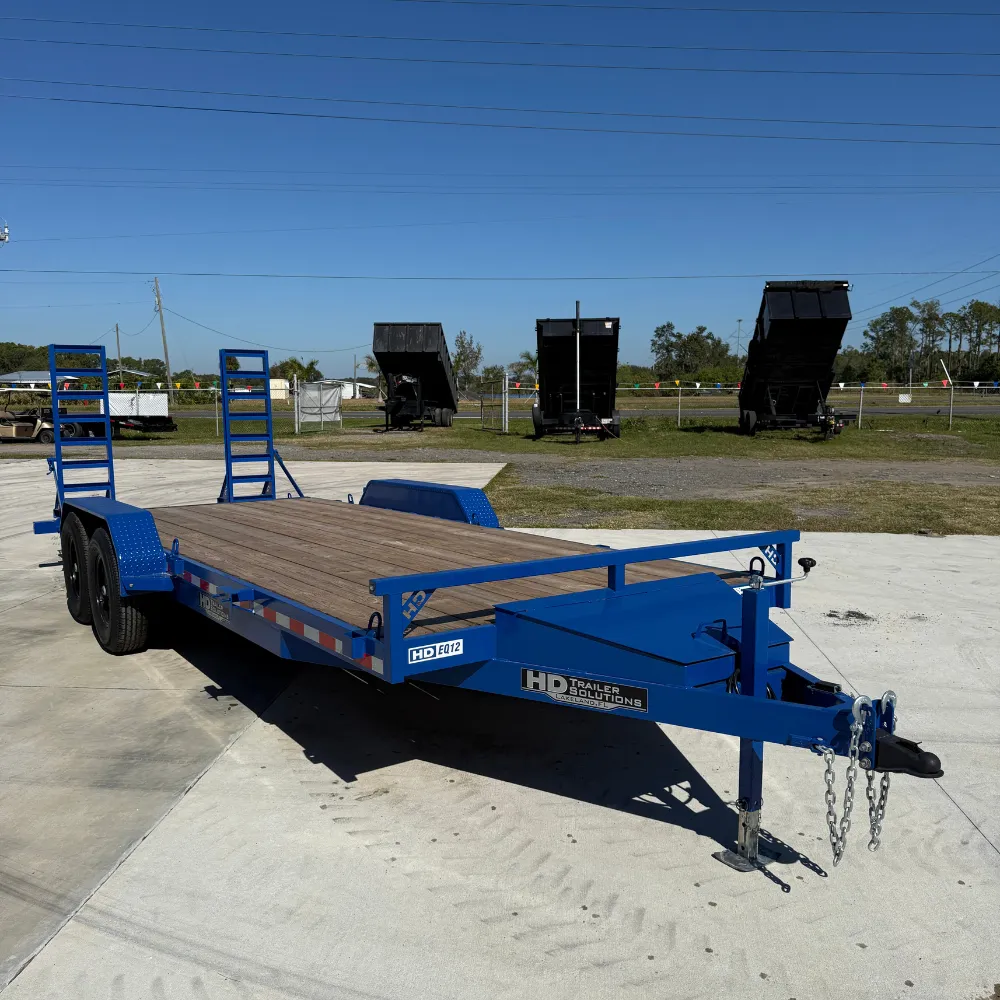

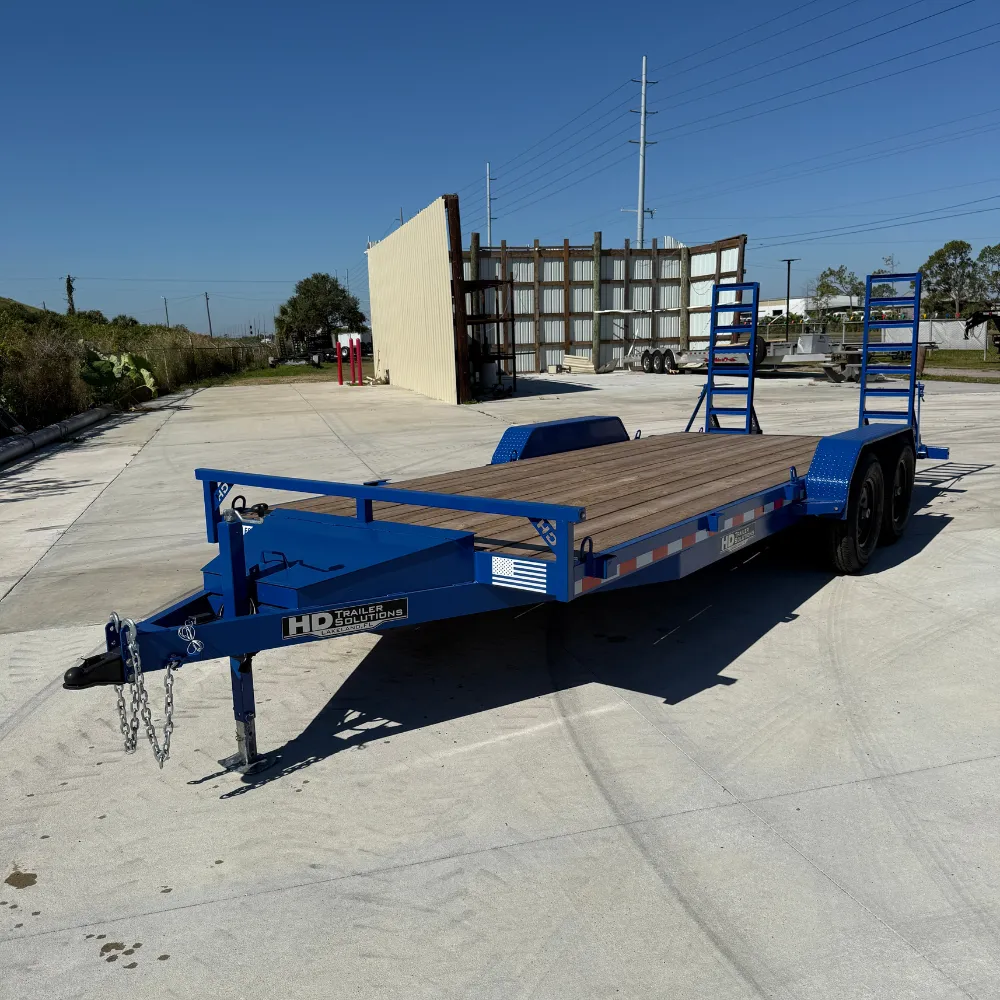

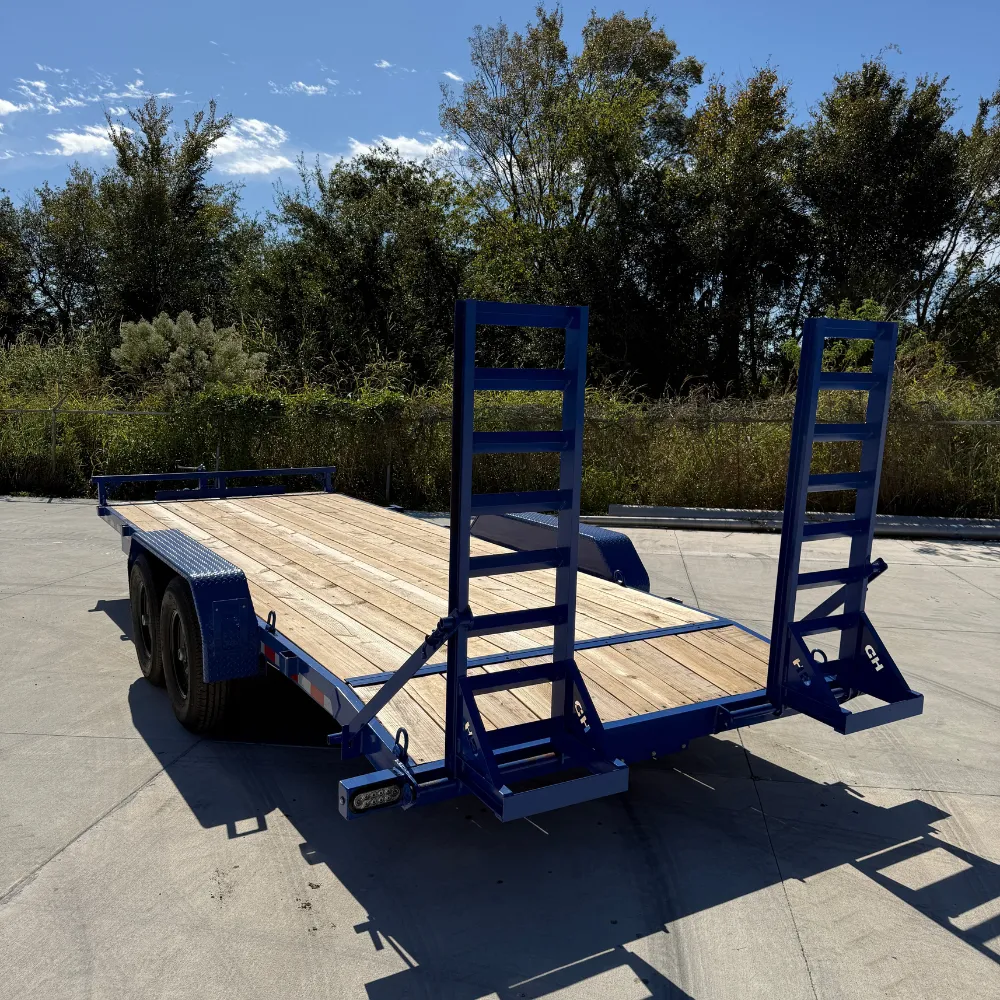

Our EQ12 equipment/car hauler is designed to deliver reliable strength for demanding loads. Equipped with removable fold-down ramps, it allows for easy loading from the rear, including forklift access when needed. Built for durability and versatility, the EQ12 is ready to handle a wide range of hauling applications with confidence.
.
| Axles | Dual 6,000 lb (electric brakes on both) | View |
| Suspension: | Slipper Spring Suspension | |
| Brakes: | Electric brakes on all axles | |
| Tires: | 235/80R16 10 Ply | |
| Wheels: | 16" Rim 6 Lug | |
| Main Frame: | 5" Channel | |
| Tongue: | 5" Channel | |
| Cross Members: | 3" Channel | |
| Deck width: | 82" between the fenders | |
| Overall trailer width: | 102" Inches | |
| Deck height: | Approximately 25" | |
| Side rails | N/A - flat deck with no rails | |
| Tie Downs: | 6 x D-rings & Stake pockets @ 4ft | |
| Coupler: | 14k Adjustable Coupler | |
| Jack: | 8k Drop foot | |
| Safety Chains: | 2 x 5/16in Chains | |
| Flooring: | 2" Pressure treated wood | |

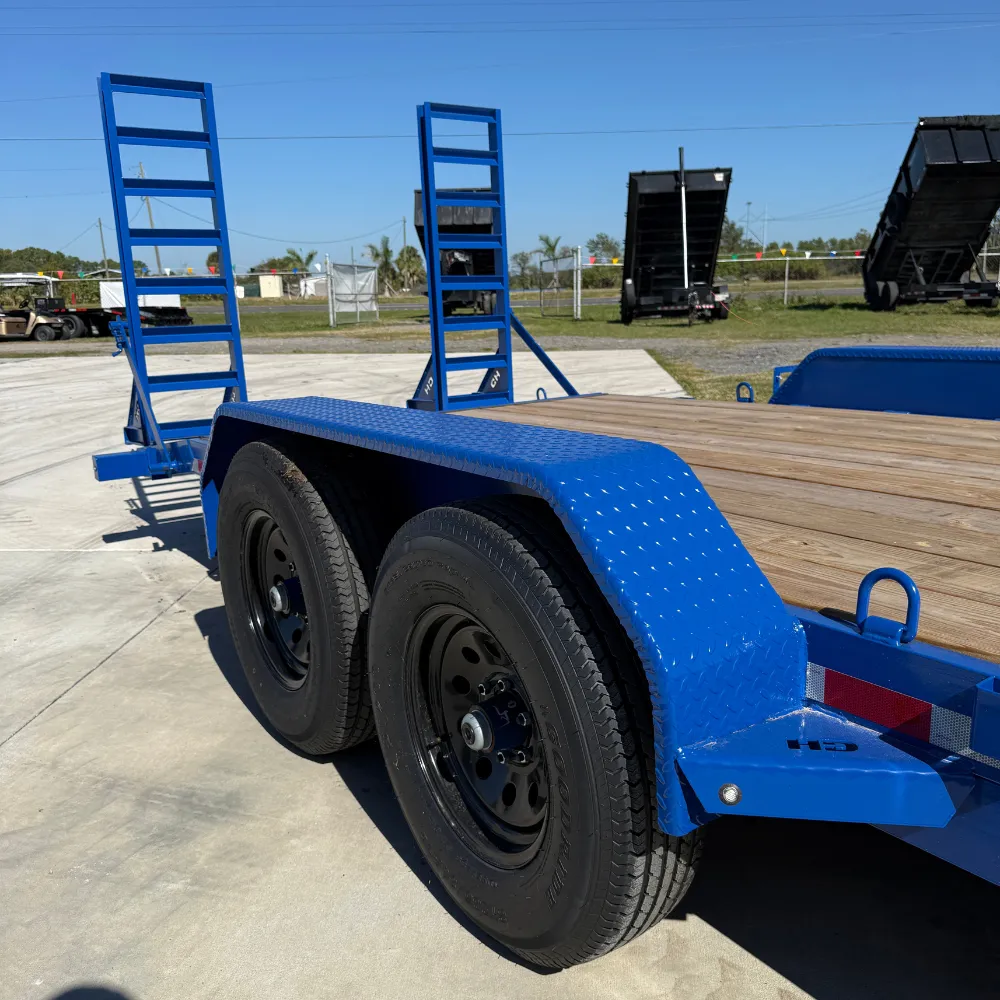

| Fenders: | Dexter Tandem Fenders | |
| Lighting: | LED lighting | |
| Wiring: | Equipped with a sealed, automotive-grade wiring harness | |
| Safety Equipment: | Required break-a-way kit and DOT Safety Tape | |

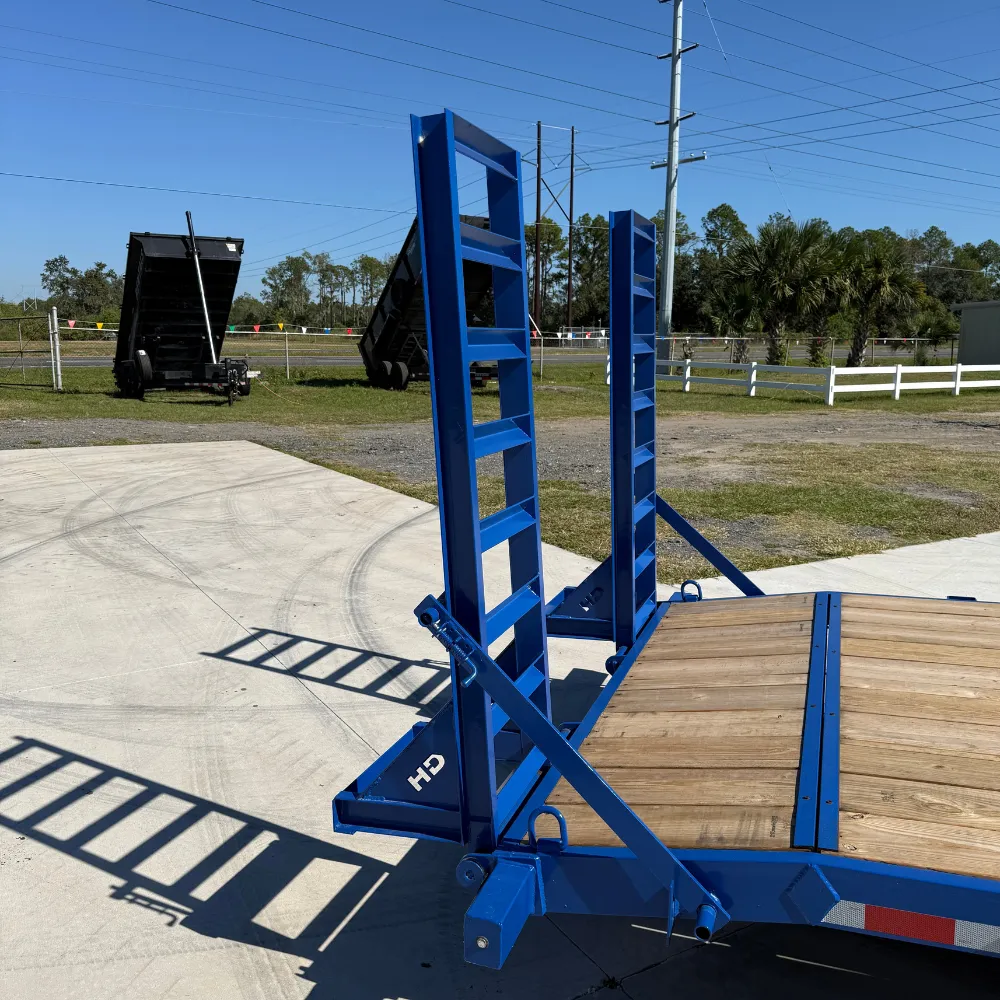

| Ramps: | NON SPRING 18"W x 60"L (Upgrade Available) | |
| Finish: | 2 part industrial enamel coating | |
| Dovetail: | 2" Dovetail (Not Dovetail Option) |
| Reinforced Fenders | |

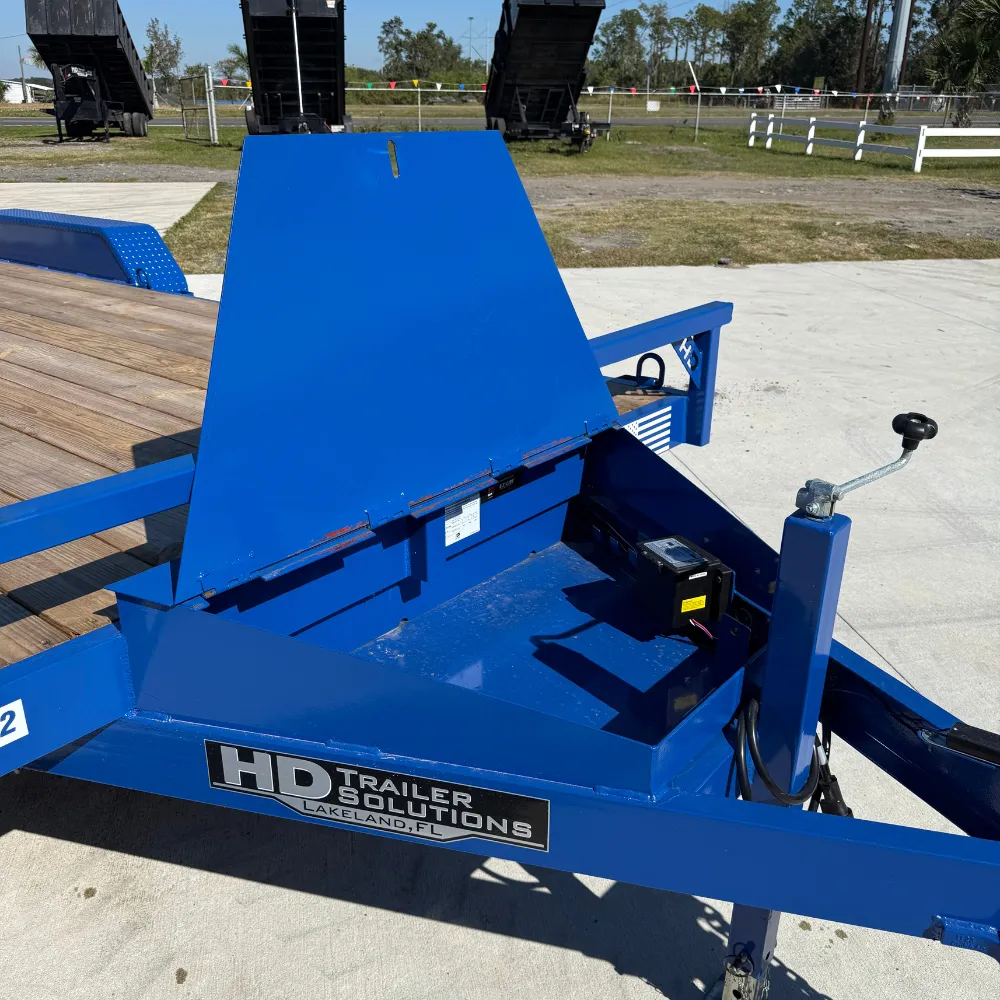

| Tongue Tool Box | Build in |
| Rub Rail | (unlimited tie down points) |
| D-rings | Choose the location |
| Custom Paint Color | |
| Upgrade to Aluminum Wheels | |
| Winch Mount | |
| Spring Assist Ramps | |
| Additional Stake Pockets | |
| 25" x 60" Spring Assisted Ramps | |
| 12k Jack |
