Boat Trailers

Start with Strength – Pick Your Model

HDBT7

Boat Length	GVWR	Payload Capacity	Tire Size	Frame Width
17' - 18'	7,000 lbs	6,160 lbs	205/75R14	80"
19' - 20'	7,000 lbs	6,130 lbs	205/75R14	80"
21' - 22'	7,000 lbs	6,100 lbs	205/75R15	80"
23' - 24'	7,000 lbs	6,070 lbs	205/75R15	80"
25' - 26'	7,000 lbs	6,040 lbs	205/75R15	80"

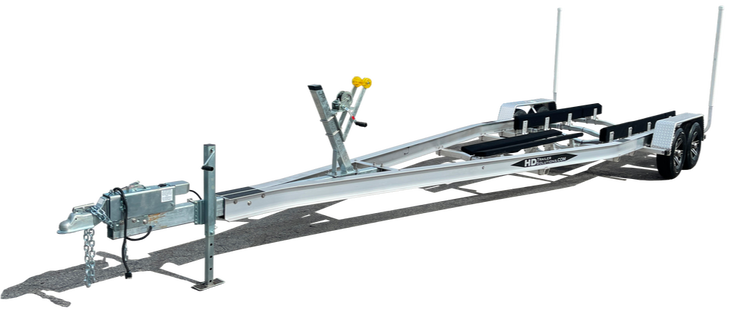

Our 7k boat trailer is made for light flat bottom or v-hull boats. Our all-aluminum construction (with the exception of axles, tongue, and winch post), ensures longtime resistance to salt water and corrosion. Torsion suspension is used in place of spring suspension and all hardware is stainless steel.

HDBT10

Boat Length	GVWR	Payload Capacity	Tire Size	Frame Width
21' - 22'	10,000 lbs	8,965 lbs	225/75R15	80"
23' - 24'	10,000 lbs	8,920 lbs	225/75R15	80"
25' - 26'	10,000 lbs	8,875 lbs	225/75R15	80"
27' - 28'	10,000 lbs	8,830 lbs	225/75R15	80"
29' - 30'	10,000 lbs	8,785 lbs	225/75R15	80"

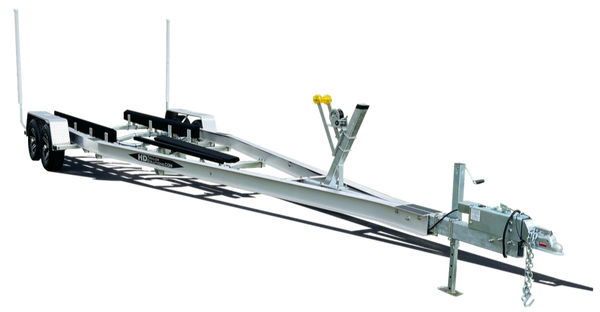

Our 10k boat trailer is made for medium sized v-hull boats. Our all-aluminum construction (with the exception of axles, tongue, and winch post), ensures longtime resistance to salt water and corrosion. Torsion suspension is used in place of spring suspension and all hardware is stainless steel.

HDBT14

Boat Length	GVWR	Payload Capacity	Tire Size	Frame Width
23' - 24'	14,000 lbs	12,765 lbs	235/80R16	80"
25' - 26'	14,000 lbs	12,705 lbs	235/80R16	80"
27' - 28'	14,000 lbs	12,645 lbs	235/80R16	80"
29' - 30'	14,000 lbs	12,585 lbs	235/80R16	80"
31' - 32'	14,000 lbs	12,525 lbs	235/80R16	80"
33' - 34'	14,000 lbs	12,465 lbs	235/80R16	80"

Our 14k boat trailer is made for medium sized v-hull boats. Our all-aluminum construction (with the exception of axles, tongue, and winch post), ensures longtime resistance to salt water and corrosion. Torsion suspension is used in place of spring suspension and all hardware is stainless steel

HDBT21

Boat Length	GVWR	Payload Capacity	Tire Size	Frame Width
31' - 32'	21,000 lbs	18,000 lbs	235/80R16E	80"
33' - 34'	21,000 lbs	17,950 lbs	235/80R16E	80"
35' - 36'	21,000 lbs	17,900 lbs	235/80R16E	80"
37' - 38'	21,000 lbs	17,850 lbs	235/80R16E	80"

Our 21k boat trailer is made for safe and reliable transport for large v-hull boats. Our all-aluminum construction (with the exception of axles, tongue, and winch post), ensures longtime resistance to salt water and corrosion. Torsion suspension is used in place of spring suspension and all hardware is stainless steel.
