The 8.5×30 24K Texas Pride Lowboy Gooseneck is engineered for professionals who demand serious strength, long-term durability, and dependable towing performance. Built on a heavy-duty 10″ channel frame (up to 30 ft) with triple 8,000 lb axles and 14-ply radial tires, this trailer delivers the rugged capability required for hauling equipment, materials, and machinery day after day.

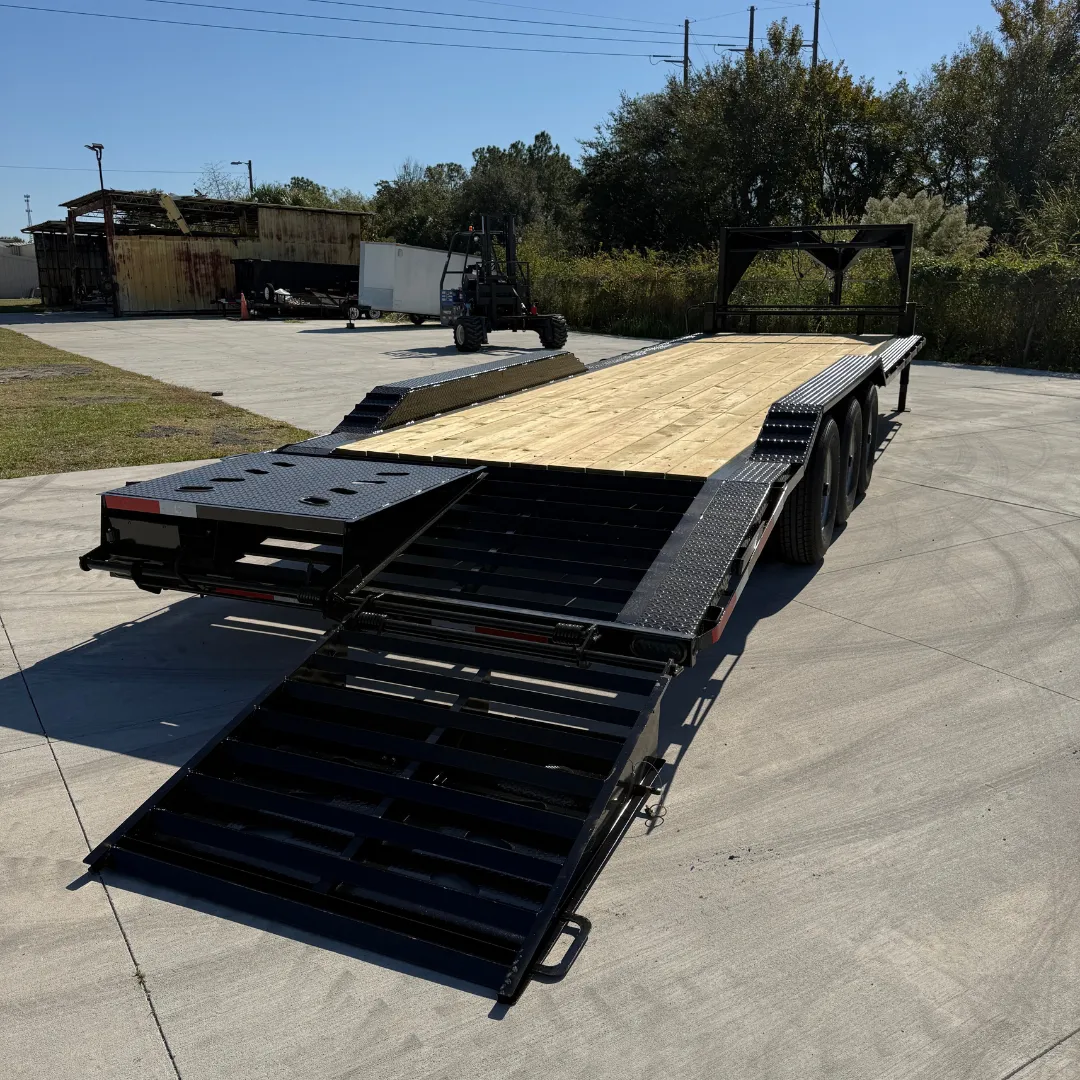

Designed for versatility, the low 24–29″ deck height, pressure-treated pine flooring, and 4′ heavy-duty dovetail make loading easier and safer. Drive-over fenders expand your usable space, and Mamm Ramps provide a wide, stable loading platform for larger equipment, making this trailer ideal for contractors, equipment haulers, agricultural work, and commercial operations.

Built with a sealed U.S.–made wiring harness, recessed LED lighting, dual 12K drop-leg jacks, and a fully primed/automotive-enamel finish, this lowboy is designed to perform reliably in demanding conditions while maintaining a professional appearance.

Key Specifications

G.V.W.R.: 24,000 lbs
Empty Weight: 6,200 lbs (20′ base trailer)
Payload Capacity: 17,800 lbs (20′ base trailer)

Axles: Triple 8,000 lb direct-lube 8-lug (electric brakes on all)
Brakes: 12″ × 2″ electric brakes on all axles
Suspension: Heavy-duty slipper spring

Tires: 16″ ST235/85R16 14-ply radial LRG (4,000 lbs each)
Wheels: 16″ 8-hole silver or white mod

Main Frame:

• 10″ channel up to 30′

• 3″ × 8″ rectangular tubing above 30′

Tongue: 10″ channel risers & 10″ channel beams
Crossmembers: 3″ channel on 16″ centers

Deck Width: 102″ overall (82″ between fenders)
Deck Height: Approx. 24″–29″
Overall Width: 102″

Side Rails: None – flat deck design
Tie-Downs: Stake pockets with rub rail

Flooring: 2″ pressure-treated pine, screwed down

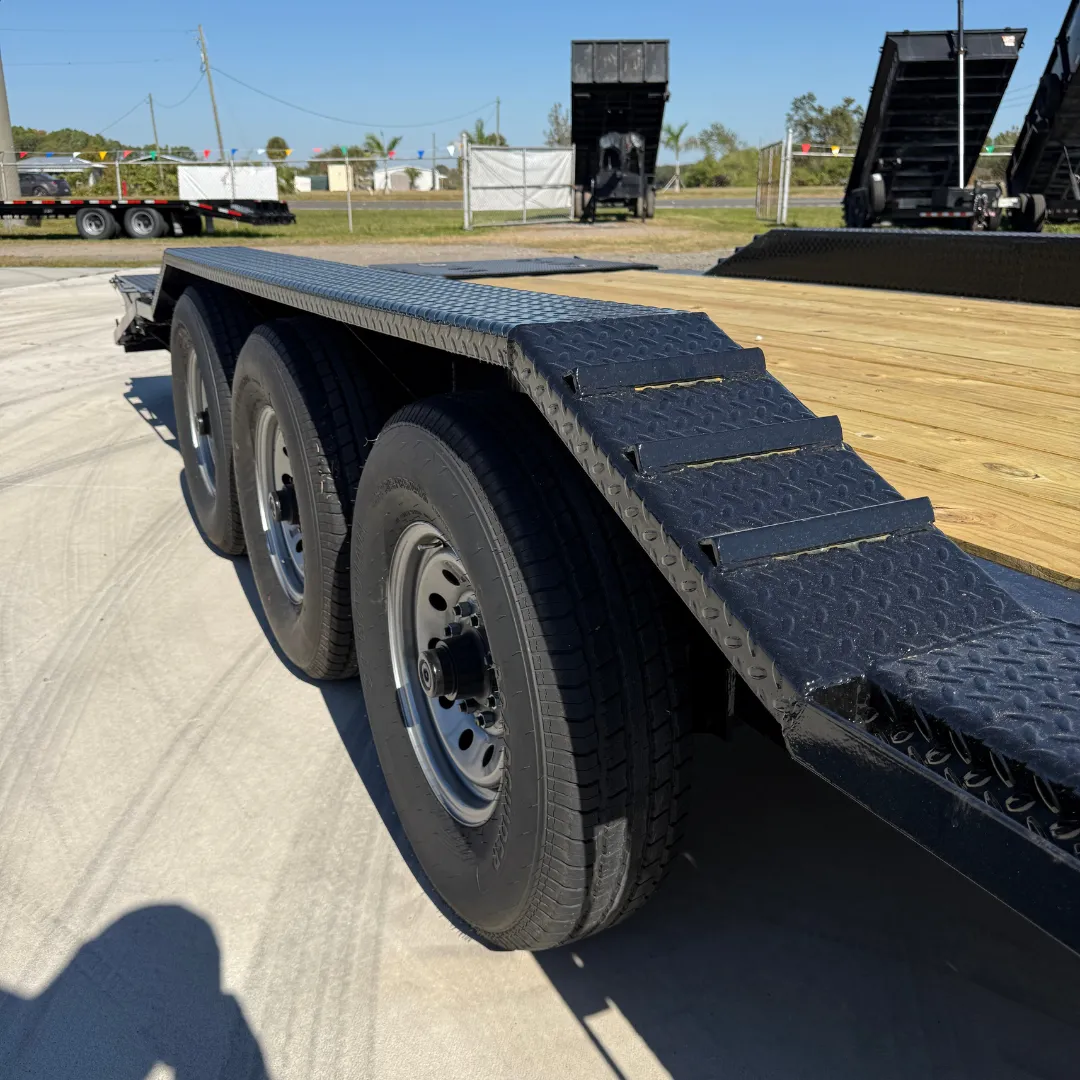

Fenders: Heavy-duty 14-gauge tread plate (reinforced, drive-over)

Coupler: Adjustable 2-5/16″ gooseneck ball
Jacks: Dual 12,000 lb spring-loaded drop-leg
Safety Chains: Heavy-duty dual chains

Ramps: 5′ steel loading ramps – Mamm Ramps upgrade installed
Dovetail: 4′ heavy-duty tread plate

Lighting: Flush-mount/recessed lifetime LED stop/turn/clearance
Wiring: U.S.-made sealed modular wiring harness
Safety Equipment: DOT breakaway kit & conspicuity tape

Finish: Fully primed and painted with automotive-grade acrylic enamel

Built for Performance, Designed for Professionals

The 8.5×30 24K Texas Pride Lowboy Gooseneck blends strength, smart engineering, and versatile loading features—like drive-over fenders and Mamm Ramps—to handle the toughest jobs with confidence. Whether you’re hauling equipment, materials, or machinery, this lowboy is built to deliver reliable, commercial-grade performance every day.
